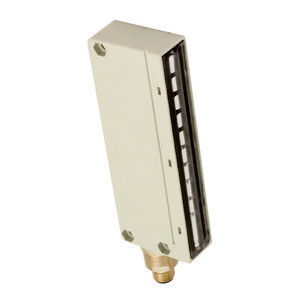

Datasensing BX04S/00-AB Sensors
Datasensing
$270.34
The Datasensing BX04S/00-AB Sensors are designed for precise area detection with their advanced 4-beam emitter system. These sensors operate within a voltage range of 10 to 26VDC and feature an adjustable 2-meter cable for flexible installation. With a nominal sensing distance of 0.3 to 2 meters and a controlled height of 90mm, they are capable of detecting objects with irregular shapes, making them ideal for various industrial applications.
The sensors boast an IP67 protection degree, ensuring complete protection against electrical damages and harsh environmental conditions. For specialized needs, IP69K and ATEX models (category 2 and 3) are available upon request. The sensors are equipped with LED indicators for easy status monitoring, including a green LED for power-on indication.
Engineered with a focus on reliability, the BX04S/00-AB Sensors feature crossed beams detection and a sensitivity adjustment trimmer for precise calibration. They are built to withstand thermal drift of ?10% and interference from external light sources up to 1000 lux (incandescent lamp) and 1500 lux (sunlight).
Constructed with durable materials, including a PBT housing and PC active head, these sensors are designed to endure operating temperatures from 0°C to +50°C without freezing. The package includes essential accessories such as 4 nuts M18x1, an adjustment key, and 2 90° angled brackets for easy installation. With CE and cULus approvals and EMC compatibility with EN 60947-5-2, the Datasensing BX04S/00-AB Sensors are a reliable choice for your sensing needs.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 30mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 15mm
- number of rays:
- 4
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 25mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- ? 85ms
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Dimensions:
- 45mm x 145mm x 20mm
- Weight:
- 150g
- Housing Material:
- PBT
- Connections:
- PVC 2m cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
