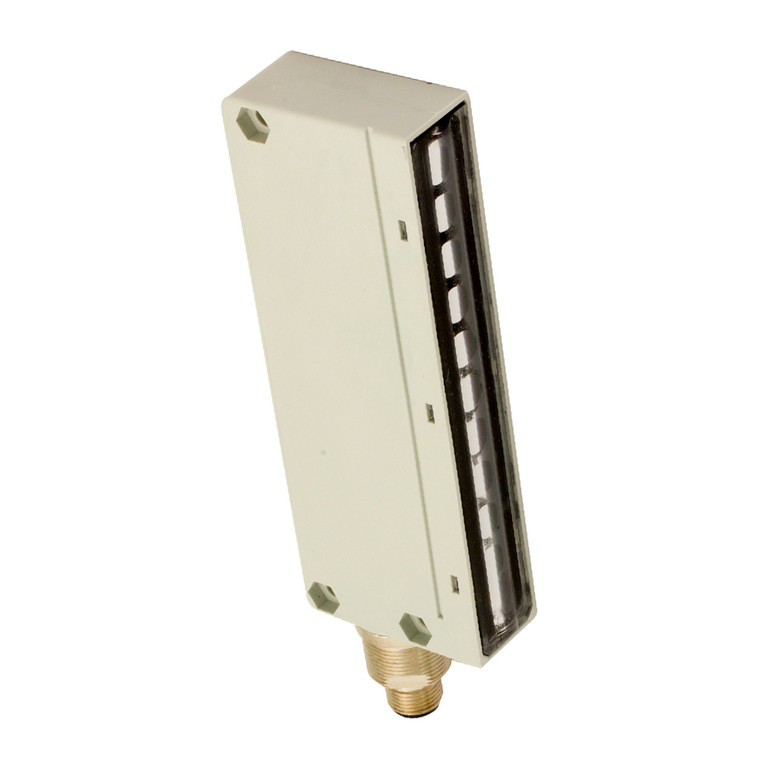

Datasensing BX04S/X0-AB Sensors

The Datasensing BX04S/X0-AB Sensors are advanced area sensors designed for precise detection and protection in various industrial environments. Equipped with four adjustable beams, these sensors operate efficiently within a voltage range of 10 to 26VDC, ensuring reliable performance. The sensors feature a nominal sensing distance of 0.3 to 2 meters, with a controlled height of 90mm and a beam spacing of 30mm, making them ideal for detecting objects with irregular shapes. Built with a robust PBT housing and a PC active head, the BX04S/X0-AB Sensors are engineered to withstand challenging conditions, offering IP67 protection against dust and water ingress. The sensors are also available in special IP69K and ATEX models for enhanced durability and safety in extreme environments. With a thermal drift of Sr ?10% and a minimum detectable object size of 15mm, these sensors provide high accuracy and sensitivity, adjustable via a trimmer. The emitter function is supported by LED indicators, including a green power-on light, and the sensors are protected against reverse polarity. The BX04S/X0-AB Sensors are designed to minimize interference from external light sources, with a tolerance of up to 1000 lux from incandescent lamps and 1500 lux from sunlight. They come with a 2-meter PVC cable for easy installation and are supplied with essential accessories, including four M18x1 nuts, an adjustment key, and two 90 angled brackets. These sensors are CE and cULus approved, ensuring compliance with international safety standards, and are compatible with EMC standard EN 60947-5-2. With a compact design measuring 45mm x 145mm x 20mm and a weight of 150g, the BX04S/X0-AB Sensors are a reliable choice for industrial applications requiring precise and durable sensing solutions.
