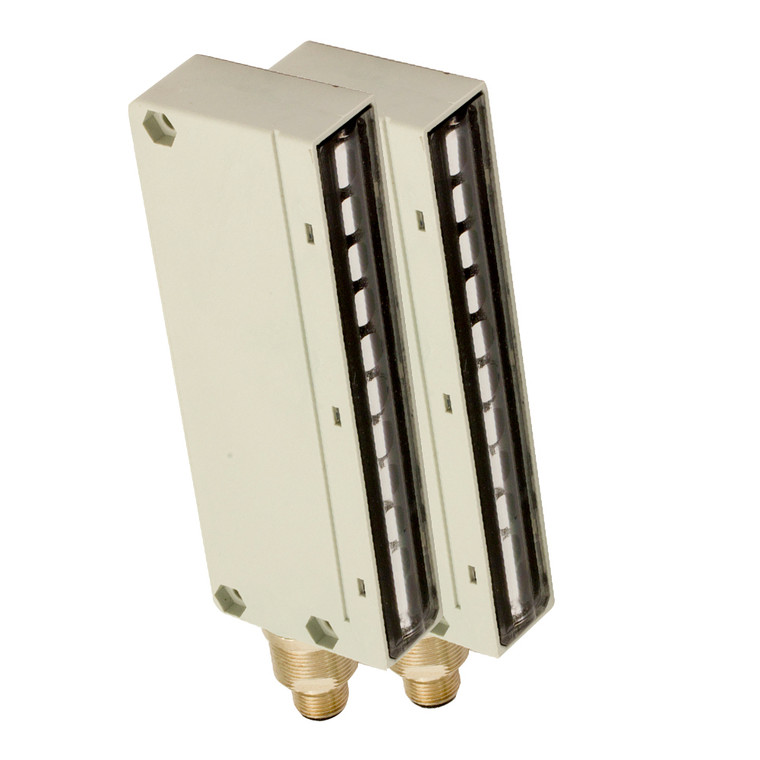

Datasensing BX04SR/0A-HB Sensors

The Datasensing BX04SR/0A-HB Sensors offer a robust and versatile solution for detecting objects with irregular shapes. This area sensor kit features four adjustable beams with a nominal sensing distance ranging from 0.3 to 2 meters, ensuring precise detection even in challenging environments. The sensors are equipped with both NPN and PNP output types, providing flexibility in various applications. With a controlled height of 90mm and a beam spacing of 30mm, the BX04SR/0A-HB is designed to detect objects as small as Ø 15mm. Built to withstand harsh conditions, these sensors boast an IP67 protection degree, with special models available for IP69K protection. They are also equipped with complete protection against electrical damages, including short-circuit and reverse polarity protection. The sensors feature LED indicators for easy monitoring, with green indicating power on, yellow for output state, and red for alignment. The BX04SR/0A-HB sensors operate on a voltage range of 10 to 26VDC, with a no-load supply current of 75mA and a load current of up to 100mA. They are designed to handle impulsive overvoltage and interference from external light sources, making them suitable for a wide range of industrial applications. The kit includes essential accessories such as four M18x1 nuts, an adjustment key, and two 90° angled brackets for easy installation. Constructed with durable PBT housing and a PC active head, these sensors are built to last, withstanding operating temperatures from 0°C to +50°C. The BX04SR/0A-HB sensors are CE and cULus approved, ensuring compliance with international standards. Whether you need to detect objects in a manufacturing line or ensure safety in automated systems, the Datasensing BX04SR/0A-HB Sensors provide reliable performance and peace of mind.
