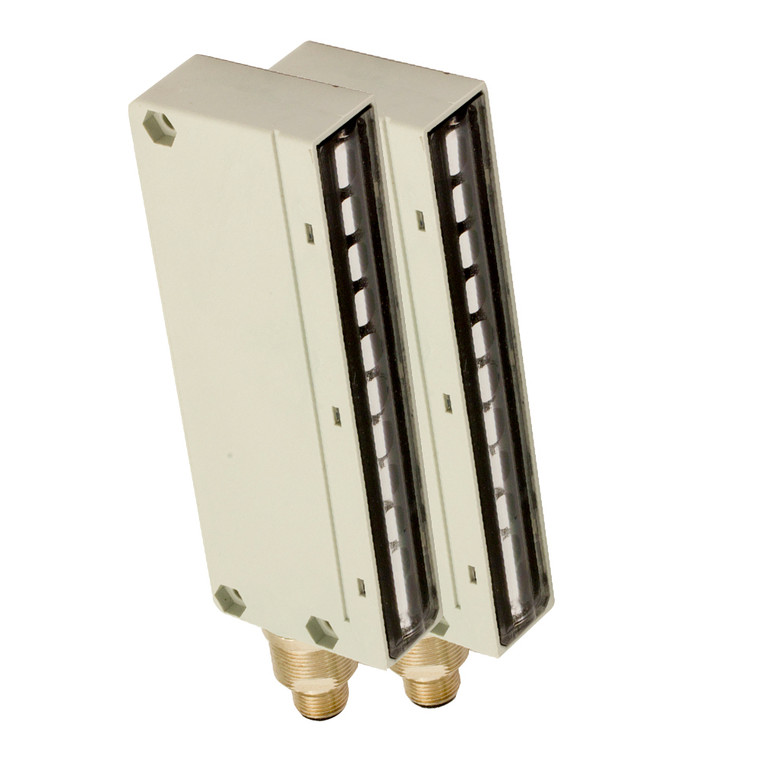

Datasensing BX04SR/XA-HB Sensors

The Datasensing BX04SR/XA-HB Sensors are a robust and versatile area sensor kit designed for precise object detection. Featuring four adjustable beams, this kit operates within a nominal sensing distance of 0.3 to 2 meters, with a thermal drift of Sr ?10%. The beams are spaced 30mm apart, providing a controlled height of 90mm and capable of detecting objects as small as Ø 15mm. Equipped with both NPN and PNP output types, the sensors offer a NO output function with a switching frequency of 180Hz. The response time for light/dark transition is 500µs, while the dark/light transition is 5ms, ensuring quick and reliable performance. Operating on a voltage range of 10 to 26VDC, the sensors have a no-load supply current of 75mA and can handle a load current of up to 100mA, with a leakage current of just 10?A. The BX04SR/XA-HB Sensors are built to withstand harsh environments, boasting an IP67 protection degree and complete protection against electrical damages. They are also available in ATEX models, cat. 2 and cat. 3, upon request. The sensors feature LED indicators for easy monitoring: green for power ON, yellow for output state, and red for alignment. Constructed with a durable PBT housing and a PC active head, the sensors are designed to operate in temperatures ranging from 0°C to +50°C. They come with an M12 plug connection and include supplied accessories such as four M18x1 nuts, an adjustment key, and two 90° angled brackets. With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, the Datasensing BX04SR/XA-HB Sensors are a reliable choice for detecting objects with irregular shapes in various industrial applications.
