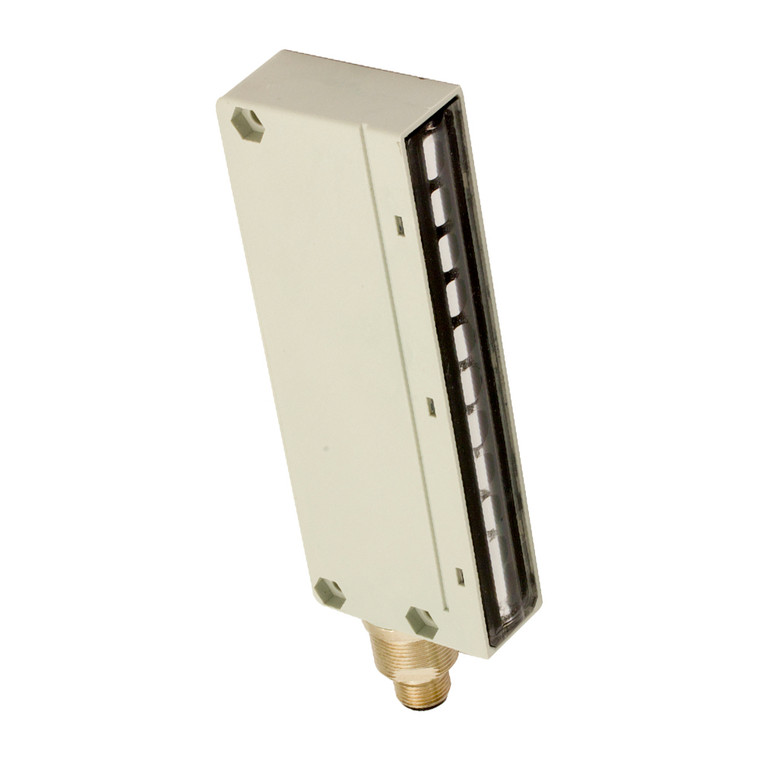

Datasensing BX10R/AD-HB2D Sensors
Datasensing
$387.11
The Datasensing BX10R/AD-HB2D Sensors are high-performance area sensor receivers designed for precision and reliability. Featuring 10 beams with a nominal sensing distance ranging from 0.3 to 2 meters, these sensors are ideal for applications requiring accurate detection. The sensors operate on a voltage range of 10 to 26VDC and are equipped with both NPN and PNP output types, ensuring versatile integration into various systems. With a controlled height of 90mm and a beam spacing of 10mm, they can detect objects as small as 5mm. The sensors boast a high switching frequency of 180Hz and quick response times, making them suitable for fast-paced environments.
Built with robust PBT housing and PC active head material, the sensors are designed to withstand challenging conditions, offering IP67 mechanical protection. They are equipped with LED indicators for output state and alignment, and feature short-circuit and reverse polarity protection for enhanced safety. The sensors are also resistant to external light interference, withstanding up to 1000lux from incandescent lamps and 1500lux from sunlight.
Supplied with essential accessories, including two M18x1 nuts, an adjustment key, and a 90 angled bracket, the Datasensing BX10R/AD-HB2D Sensors are easy to install and adjust. With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, these sensors are a reliable choice for industrial applications.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Function Principle:
- Receiver
- Output type:
- NPN + PNP
- Output Function:
- NO
- Switching frequency:
- 180Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 115g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50°C (without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
