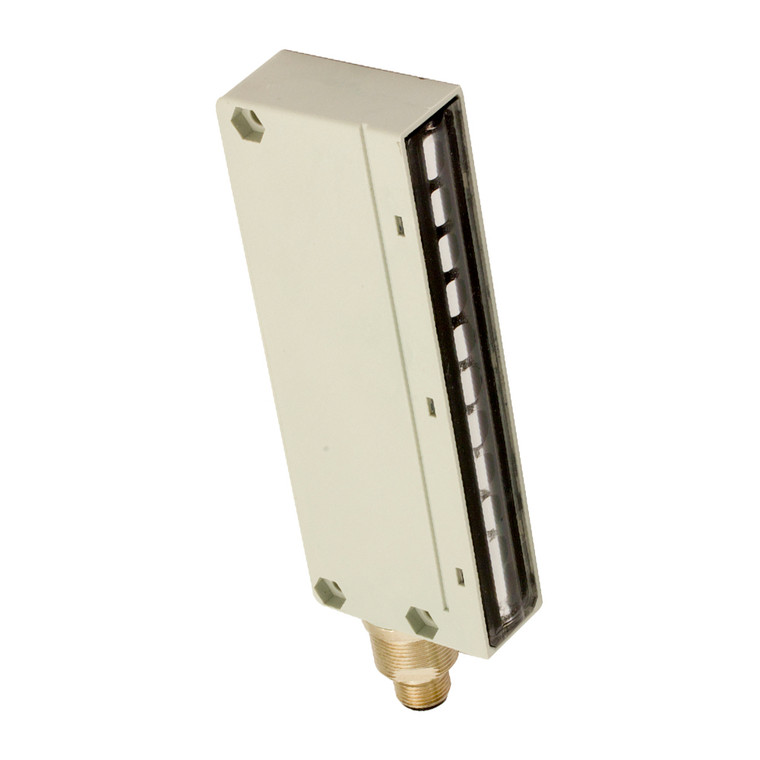

Datasensing BX10R/CD-AB Sensors
Datasensing
$408.12
The Datasensing BX10R/CD-AB Sensors are advanced area sensor receivers designed for precise object detection. Featuring 10 beams with a nominal sensing distance of 0.3 to 2 meters, these sensors are equipped with a 2-meter LO cable and operate on a voltage range of 10 to 26VDC. With a controlled height of 90mm and a beam spacing of 10mm, they can detect objects as small as 5mm. The sensors boast a high switching frequency of 180Hz and quick response times, making them ideal for dynamic environments.
Built with robust PBT housing and IP67 protection, these sensors are resistant to electrical damage and can withstand harsh conditions. They offer complete protection against short-circuits, reverse polarity, and impulsive overvoltage. The sensors are also equipped with LED indicators for easy alignment and output state monitoring.
Designed for versatility, the BX10R/CD-AB Sensors feature both NPN and PNP output types with an NC output function. They are compatible with ATEX models, cat. 2 and cat. 3, available upon request. The sensors come with supplied accessories, including two M18x1 nuts, an adjustment key, and a 90 angled bracket, ensuring easy installation and setup. With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, these sensors are a reliable choice for industrial applications requiring precise and efficient object detection.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Function Principle:
- Receiver
- Output type:
- NPN + PNP
- Output Function:
- NC
- Switching frequency:
- 180Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 45mm x 145mm x 20mm
- Weight:
- 300g
- Housing Material:
- PBT
- Connections:
- PVC 2m cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
