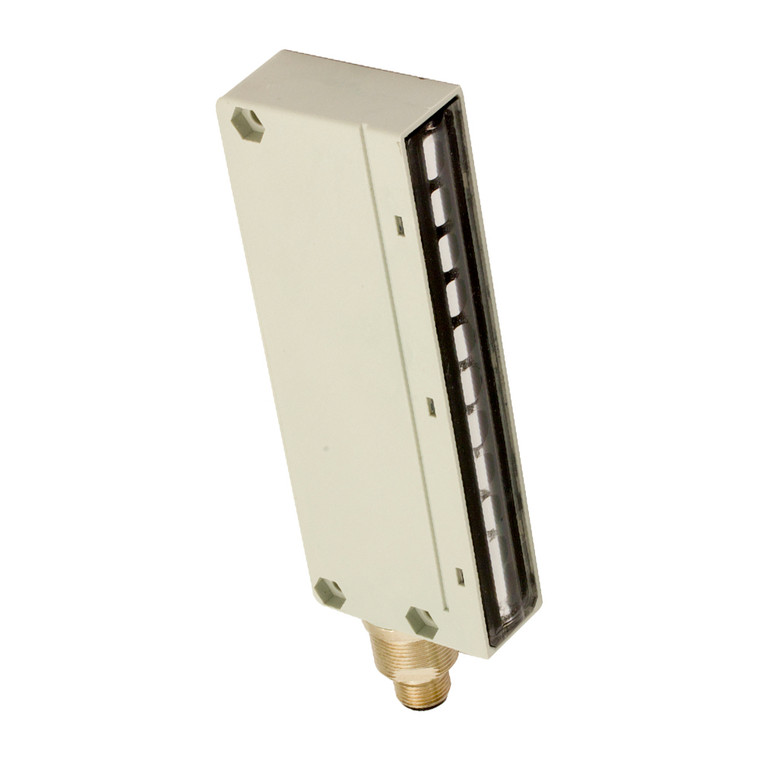

Datasensing BX10R/CD-ABVE80 Sensors

The Datasensing BX10R/CD-ABVE80 Sensors are high-performance area sensor receivers designed for precision and reliability. Featuring 10 beams with a nominal sensing distance ranging from 0.3 to 2 meters, these sensors are ideal for applications requiring accurate object detection. The sensors operate on a voltage range of 10 to 26VDC and are equipped with both NPN and PNP output types, ensuring versatile integration into various systems. With a controlled height of 90mm and a beam spacing of 10mm, the BX10R/CD-ABVE80 can detect objects as small as Ø 5mm. The sensors boast a high switching frequency of 180Hz, with response times of 500µs for light-to-dark transitions and 5ms for dark-to-light transitions, making them suitable for fast-paced environments. Built with durability in mind, the sensors feature a robust PBT housing and a PC active head material, offering IP67 mechanical protection. They are equipped with LED indicators for output state and alignment, and include short-circuit and reverse polarity protection for enhanced safety. The sensors are resistant to external light interference, withstanding up to 1000lux from incandescent lamps and 1500lux from sunlight. The package includes a 2-meter LO cable with a pigtail M12 connection, along with supplied accessories such as two M18x1 nuts, an adjustment key, and a 90° angled bracket for easy installation. Weighing just 140g, these sensors are compact and efficient, with a tightening torque of 25Nm. Approved with CE and EMC compatibility (EN 60947-5-2), the Datasensing BX10R/CD-ABVE80 Sensors are a reliable choice for your sensing needs.
