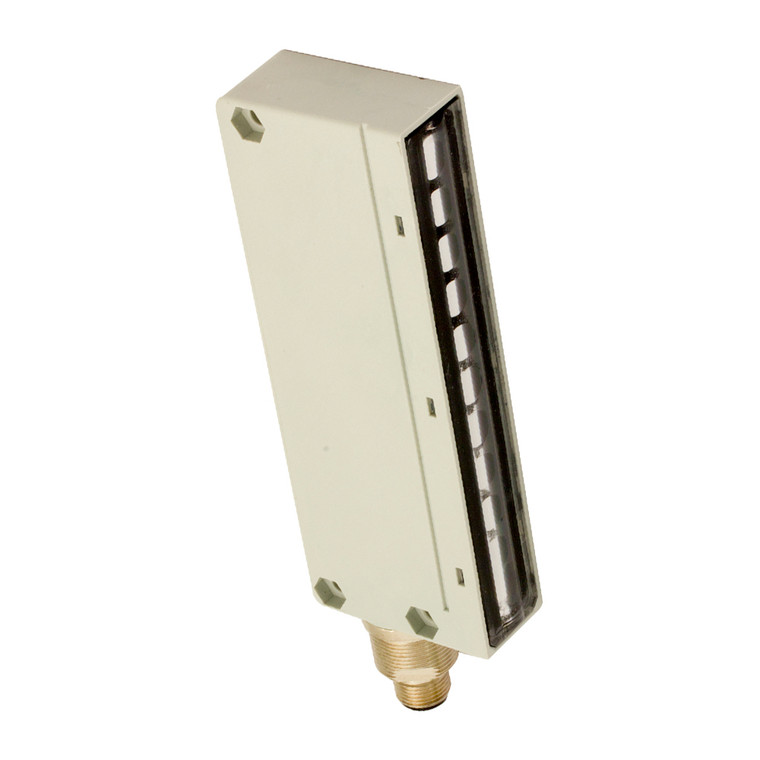

The Datasensing BX10R/CD-ABVE806A Sensors are high-performance area sensor receivers designed for precision and reliability. Featuring 10 beams with a nominal sensing distance ranging from 0.3 to 6 meters, these sensors are ideal for applications requiring accurate detection. The sensors operate on a voltage range of 10 to 26VDC and are equipped with both NPN and PNP output types, offering flexibility in integration. With a controlled height of 90mm and a beam spacing of 10mm, they can detect objects as small as 5mm. The sensors boast a high switching frequency of 180Hz and quick response times, ensuring efficient performance in dynamic environments.
Constructed with durable PBT housing and a PC active head, the sensors are built to withstand challenging conditions, offering IP67 mechanical protection. They are equipped with LED indicators for output state and alignment, and feature short-circuit and reverse polarity protection for enhanced safety. The sensors come with a 2-meter LO cable and a 200mm pigtail M12 connection, ensuring easy installation and connectivity. Supplied with essential accessories, including M18x1 nuts, an adjustment key, and a 90 angled bracket, these sensors are ready for immediate deployment. With CE approval and EMC compatibility, the Datasensing BX10R/CD-ABVE806A Sensors are a reliable choice for industrial automation and safety applications.
- Nominal sensing distance:
- 0,3 6m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Function Principle:
- Receiver
- Output type:
- NPN + PNP
- Output Function:
- NC
- Switching frequency:
- 180Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 140g
- Housing Material:
- PBT
- Connections:
- cable PVC 200mm + M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
