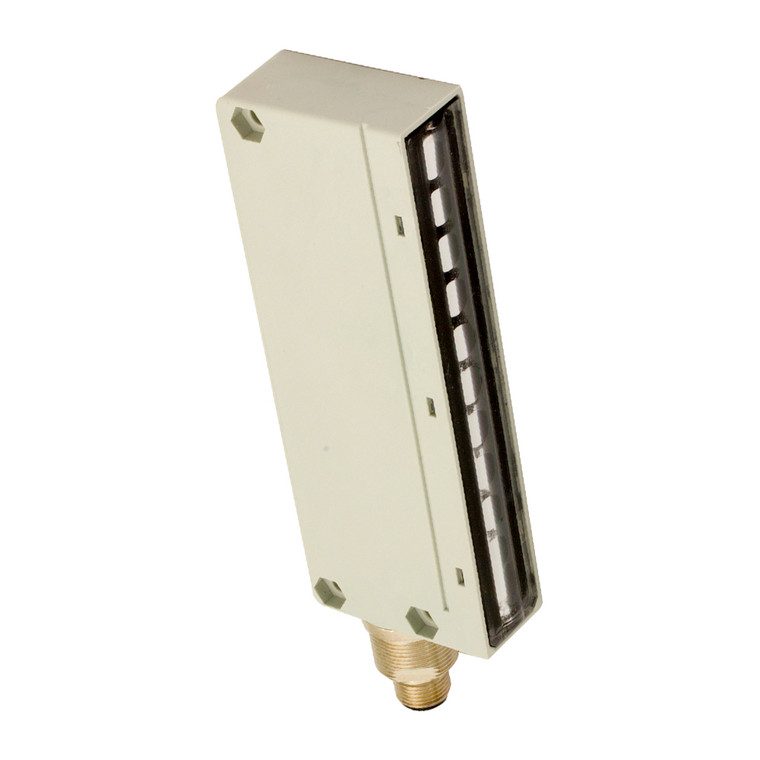

Datasensing BX10R/CD-HB Sensors

The Datasensing BX10R/CD-HB Sensors are high-performance area sensor receivers designed for precise object detection. Featuring 10 beams and a nominal sensing distance of 0.3 to 2 meters, these sensors are ideal for detecting objects with irregular shapes. With a controlled height of 90mm and a minimum detectable object size of 5mm, they ensure accurate and reliable performance. Equipped with IP67 protection, these sensors offer complete protection against electrical damages and are suitable for harsh environments. The sensors also feature LED indicators for easy status monitoring, with yellow indicating output state and red for alignment. The crossed beams detection enhances their capability to detect objects effectively. The BX10R/CD-HB Sensors operate on a voltage range of 10 to 26VDC, with a no-load supply current of 50mA and a load current of up to 100mA. They are designed with NPN and PNP output types, and an NC output function, providing flexibility in various applications. The sensors boast a high switching frequency of 180Hz and quick response times for light/dark and dark/light transitions. Built with robust materials, including a PBT housing and PC active head, these sensors are durable and reliable. They come with essential accessories such as two M18x1 nuts, an adjustment key, and a 90 angled bracket for easy installation. The sensors are CE and cULus approved, ensuring compliance with international standards. With features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, the Datasensing BX10R/CD-HB Sensors are engineered for safety and longevity. They are also available in ATEX models, cat. 2 and cat. 3, upon request, making them suitable for use in potentially explosive atmospheres.
