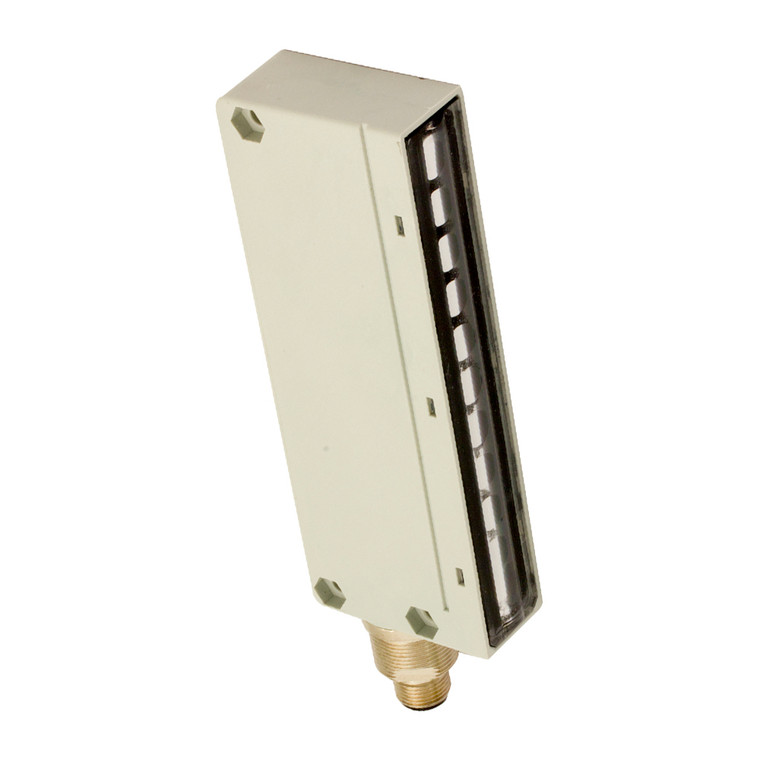

Datasensing BX10S/00-HB70 Sensors
Datasensing
$396.65
The Datasensing BX10S/00-HB70 Sensors are advanced area sensors designed for precision and reliability. Featuring 10 adjustable beams with a nominal sensing distance ranging from 0.3 to 2 meters, these sensors are perfect for applications requiring accurate detection. The sensors operate on a voltage range of 10 to 26VDC and have a no-load supply current of 25mA, ensuring efficient energy consumption. With a controlled height of 90mm and a beam spacing of 10mm, they can detect objects as small as 5mm. The sensors are equipped with a trimmer for sensitivity adjustment and feature an emitter function principle with infrared emission. They are protected against reverse polarity and have a mechanical protection rating of IP67, making them suitable for various environments. The sensors are housed in durable PBT material with an active head made of PC, and they come with an M12 plug connection for easy installation. Additional features include LED indicators for power status, a time delay before availability of ? 85ms, and excellent interference resistance to external light sources. The package includes two M18x1 nuts, an adjustment key, and a 90 angled bracket for versatile mounting options. With CE and cULus approvals and EMC compatibility with EN 60947-5-2, these sensors are a reliable choice for industrial applications.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 25mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- ? 85ms
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Weight:
- 115g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
