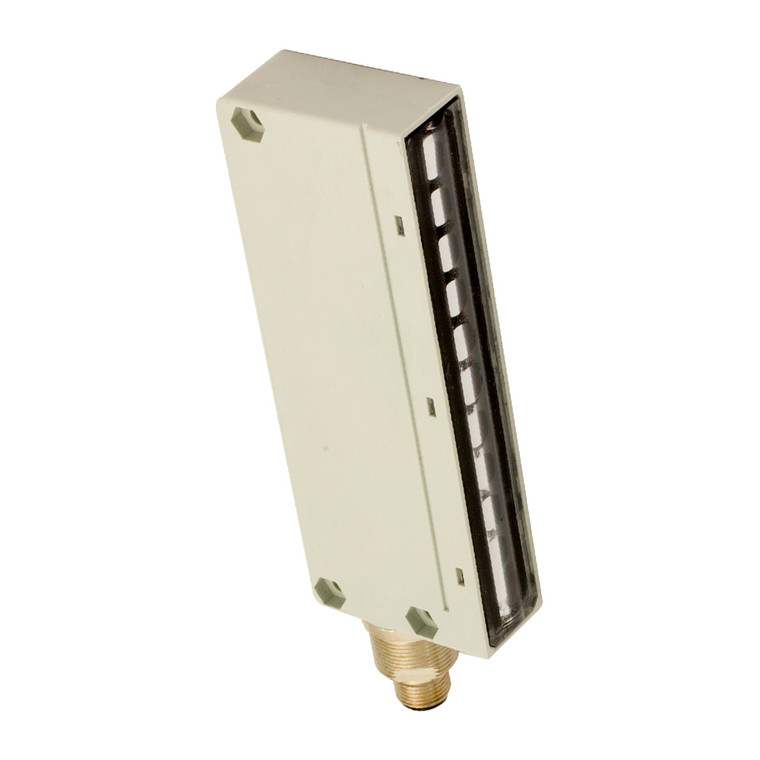

The Datasensing BX10S/X0-AB Sensors are designed for precise area detection with a robust IP67 protection degree, ensuring complete protection against electrical damages. These sensors are equipped with 10 adjustable beams and a 2-meter CK cable, operating efficiently within a voltage range of 10-26VDC. Ideal for detecting objects with irregular shapes, the BX10S/X0-AB features crossed beams detection and LED indicators for easy monitoring. With a nominal sensing distance of 0.3 to 2 meters and a controlled height of 90mm, it can detect objects as small as 5mm. The sensor's sensitivity can be adjusted using a trimmer, and it operates on an infrared emission principle. It is designed to withstand external light interference up to 1000lux from incandescent lamps and 1500lux from sunlight. The housing is made from durable PBT material, and the active head is constructed from PC, ensuring longevity and reliability. The sensor is supplied with essential accessories, including two M18x1 nuts, an adjustment key, and a 90 angled bracket, making installation straightforward. With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, the BX10S/X0-AB is a versatile and reliable choice for various industrial applications.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter with check
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 25mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- ? 85ms
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Dimensions:
- 45mm x 145mm x 20mm
- Weight:
- 150g
- Housing Material:
- PBT
- Connections:
- PVC 2m cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
