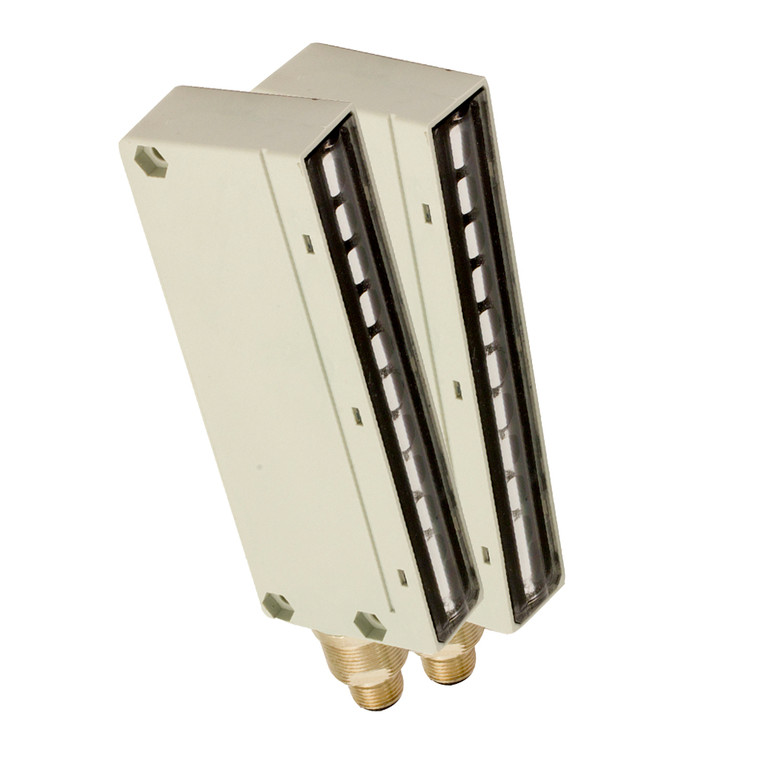

The Datasensing BX10SR/0A-HB6A Sensors are a comprehensive area sensor kit designed for precision and reliability. Featuring 10 adjustable beams with a nominal sensing distance ranging from 0.3 to 6 meters, this kit is ideal for applications requiring accurate object detection. The sensors operate on a 10 to 26VDC power supply and include both NPN and PNP output types with a NO output function.
The BX10SR/0A-HB6A sensors boast a high switching frequency of 110Hz and quick response times, ensuring efficient performance in dynamic environments. The emitter and receiver are coded for easy identification, with the emitter code being BX10S/00-HB6A and the receiver code BX10R/AD-HB6A. The sensors are equipped with LED indicators for power, output state, and alignment, providing clear visual feedback.
Constructed with durable PBT housing and PC active head material, these sensors are built to withstand challenging conditions, offering IP67 mechanical protection. The kit includes essential accessories such as 4 M18x1 nuts, an adjustment key, and 2 90° angled brackets for easy installation. With features like short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, the BX10SR/0A-HB6A sensors ensure safe and reliable operation.
Ideal for environments with varying light conditions, these sensors can handle interference from external light sources up to 1000 lux from incandescent lamps and 1500 lux from sunlight. The compact dimensions of 45x145x20 mm and a weight of 230g make them easy to integrate into existing systems. Approved by CE and cULus, and compliant with EMC compatibility standard EN 60947-5-2, the Datasensing BX10SR/0A-HB6A Sensors are a robust solution for your sensing needs.
- Nominal sensing distance:
- 0,3 6m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter- Receiver
- Emitter/Receiver Code:
- BX10SR/0A-HB6A
- Emitter Code:
- BX10S/00-HB6A
- Receiver Code:
- BX10R/AD-HB6A
- Output type:
- NPN + PNP
- Output Function:
- NO
- Switching frequency:
- 110Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 75mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 230g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
