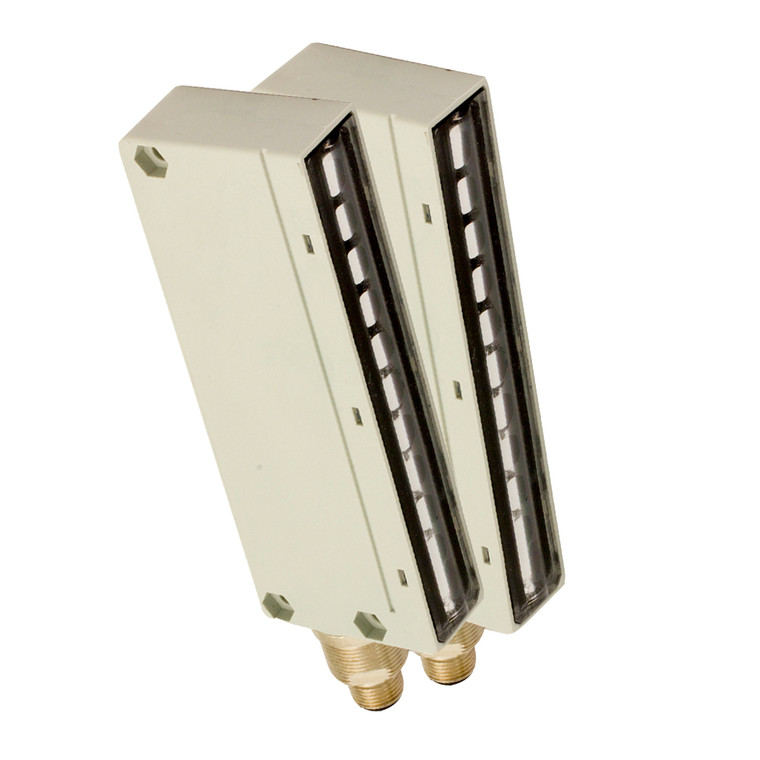

Datasensing BX10SR/0A-HB6XLS Sensors

The Datasensing BX10SR/0A-HB6XLS Sensors offer a comprehensive area sensor kit featuring 10 adjustable beams with a nominal sensing distance ranging from 0.3 to 4 meters. Designed with precision, the kit includes a P+N DO connection and an M12 connector, ensuring seamless integration into various systems. The sensors boast a controlled height of 90mm and a beam spacing of 10mm, capable of detecting objects as small as Ø 5mm. Equipped with a trimmer for sensitivity adjustment, the sensors operate on an emitter-receiver principle, with a switching frequency of 110Hz. The response time is optimized for both light/dark and dark/light transitions, ensuring quick and reliable performance. Operating within a voltage range of 10 to 26VDC, the sensors maintain a low no-load supply current of 75mA and a load current of up to 100mA, with minimal leakage current and output voltage drop. The BX10SR/0A-HB6XLS Sensors are designed to withstand external light interference up to 1000lux from incandescent lamps and 1500lux from sunlight, thanks to their infrared emission. They feature robust protection mechanisms, including short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. The sensors are housed in durable PBT material with an active head made of PC, offering IP67 mechanical protection and a wide operating temperature range of 0°C to +50°C. Additional features include LED indicators for power, output state, and alignment, as well as a time delay before availability of ? 85ms. The kit comes with supplied accessories such as 4 nuts M18x1, an adjustment key, and 2 90° angled brackets, making installation straightforward. With CE and cULus approvals and EMC compatibility with EN 60947-5-2, the Datasensing BX10SR/0A-HB6XLS Sensors are a reliable choice for precise and efficient area sensing applications.
