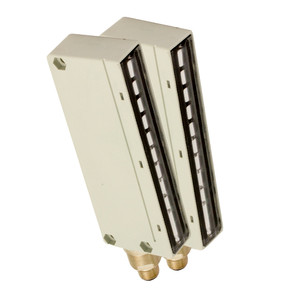

Datasensing BX10SR/0A-HB6XLSAN Sensors
Datasensing
$805.00
The Datasensing BX10SR/0A-HB6XLSAN Sensors offer a robust area sensor kit featuring 10 adjustable beams with a nominal sensing distance ranging from 0.3 to 4 meters. Designed for precision, the kit includes both emitter and receiver components, with a controlled height of 90mm and a beam spacing of 10mm, capable of detecting objects as small as Ø 5mm. The sensors operate on a 10
26VDC voltage range, with a switching frequency of 110Hz and a rapid response time of 500µs for light/dark transitions.
Equipped with NPN and PNP output types, the sensors feature a NO output function and are protected against short-circuits and reverse polarity. The system is designed to withstand external light interference up to 1000lux from incandescent lamps and 1500lux from sunlight, ensuring reliable performance in various lighting conditions. The housing is made from durable PBT material, with an IP67 mechanical protection rating, making it suitable for harsh environments.
The kit includes essential accessories such as 4 M18x1 nuts, an adjustment key, and 2 90° angled brackets for easy installation. With CE and cULus approvals, the sensors are compliant with EMC compatibility standards EN 60947-5-2, ensuring safe and efficient operation. The system is designed to operate within a temperature range of 0°C to +50°C, making it versatile for various industrial applications.
- Nominal sensing distance:
- 0,3 4m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter- Receiver
- Emitter/Receiver Code:
- BX10SR/0A-HB6XLSAN
- Emitter Code:
- BX10S/00-HB6XLSAN
- Receiver Code:
- BX10R/AD-HB6XLSAN
- Output type:
- NPN + PNP
- Output Function:
- NO
- Switching frequency:
- 110Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 75mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 230g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
