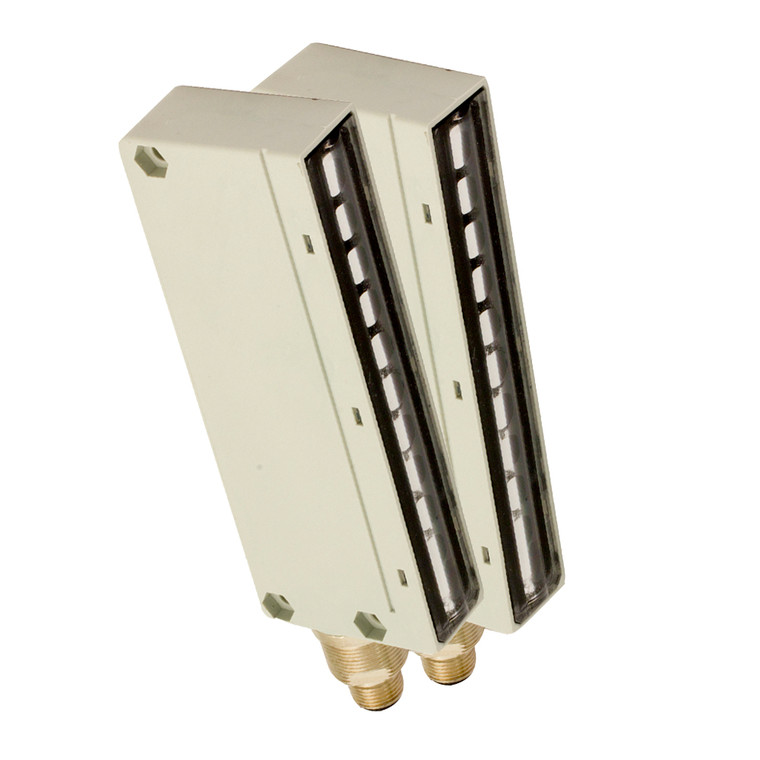

Datasensing BX10SR/0A-HB74 Sensors
Datasensing
$662.41
The Datasensing BX10SR/0A-HB74 Sensors are a robust area sensor kit designed for precision and reliability. Featuring a nominal sensing distance of 0.3 to 2 meters, these sensors are equipped with 10 beams spaced 10mm apart, ensuring a controlled height of 90mm. They can detect objects as small as Ø 5mm, making them ideal for detailed applications. The sensors operate on an emitter-receiver principle, with both NPN and PNP output types and a NO output function. With a switching frequency of 180Hz and quick response times of 500µs for light/dark transitions and 5ms for dark/light transitions, they are highly responsive. The sensors are powered by a 10 to 26VDC operating voltage, with a no-load supply current of 75mA and a load current of up to 100mA. They feature LED indicators for easy status monitoring and are protected against short-circuits, reverse polarity, and impulsive overvoltage. Constructed with durable PBT housing and PC active head material, these sensors are IP67 rated for mechanical protection and can operate in temperatures ranging from 0°C to +50°C. The kit includes essential accessories such as nuts, an adjustment key, and angled brackets for easy installation. With CE and cULus approvals and EMC compatibility, the BX10SR/0A-HB74 Sensors are a reliable choice for various industrial applications.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter- Receiver
- Emitter/Receiver Code:
- BX10SR/0A-HB74
- Emitter Code:
- BX10S/00-HB74
- Receiver Code:
- BX10R/AD-HB74
- Output type:
- NPN + PNP
- Output Function:
- NO
- Switching frequency:
- 180Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 75mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 230g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
