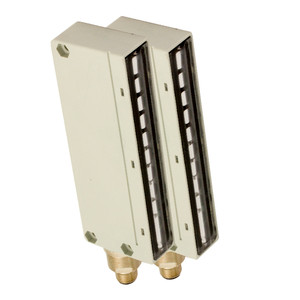

Datasensing BX10SR/0A-HB79 Sensors
Datasensing
$979.77
The Datasensing BX10SR/0A-HB79 Sensors offer a robust area sensor kit designed for precision and reliability. Featuring 10 adjustable beams, this sensor kit operates within a voltage range of 10 to 26VDC and is housed in a durable aluminium enclosure with a height of 90mm. It boasts a nominal sensing distance of 0.3 to 2 meters, with a thermal drift of Sr at ?10%. The beams are spaced at 10mm, allowing for the detection of objects as small as Ø 5mm. The kit includes both an emitter and receiver, with a switching frequency of 180Hz and a response time of 500µs for light/dark transitions and 5ms for dark/light transitions.
The BX10SR/0A-HB79 is equipped with NPN and PNP output types, featuring a NO output function. It supports a load current of up to 100mA, with a leakage current of 10?A and an output voltage drop of ?2V at Iload = 100mA. The sensor is protected against short-circuits with an autoreset function and offers reverse polarity protection. It emits infrared light and can withstand interference from external light sources up to 1000lux from incandescent lamps and 1500lux from sunlight.
The sensor is designed for easy installation with an M12 plug connection and comes with supplied accessories including 4 nuts M18x1, an adjustment key, and 2 90° angled brackets. It is CE and cULus approved, with EMC compatibility according to EN 60947-5-2 standards. The sensor is mechanically protected with an IP67 rating and can operate in temperatures ranging from 0°C to +50°C. With a weight of 230g, the BX10SR/0A-HB79 is a reliable choice for various industrial applications requiring precise area sensing capabilities.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter- Receiver
- Emitter/Receiver Code:
- BX10SR/0A-HB79
- Emitter Code:
- BX10S/00-HB79
- Receiver Code:
- BX10R/AD-HB79
- Output type:
- NPN + PNP
- Output Function:
- NO
- Switching frequency:
- 180Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 75mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 230g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
