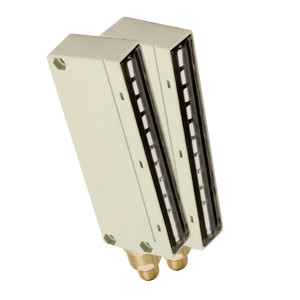

The Datasensing BX10SR/0C-HB6A Sensors are a comprehensive area sensor kit featuring 10 adjustable beams with a nominal sensing distance ranging from 0.3 to 6 meters. Designed for precision, the kit includes both emitter and receiver components, with a controlled height of 90mm and a beam spacing of 10mm, capable of detecting objects as small as Ø 5mm. The sensors operate on a 10
26VDC voltage range, with a switching frequency of 180Hz and a response time of 500µs for light/dark transitions and 5ms for dark/light transitions.
Equipped with NPN and PNP output types and NC output function, the sensors ensure reliable performance with a no-load supply current of 75mA and a load current of up to 100mA. The system is protected against short-circuits with an autoreset feature and includes reverse polarity protection. The sensors are housed in durable PBT material with an IP67 mechanical protection rating, making them suitable for various industrial environments.
The kit comes with essential accessories, including 4 M18x1 nuts, an adjustment key, and 2 90° angled brackets, ensuring easy installation and setup. LED indicators provide clear status updates, with green for power ON, yellow for output state, and red for alignment. The sensors are designed to withstand external light interference up to 1000lux from incandescent lamps and 1500lux from sunlight, ensuring consistent performance. With CE and cULus approvals and EMC compatibility with EN 60947-5-2, the BX10SR/0C-HB6A Sensors are a reliable choice for precise area sensing applications.
- Nominal sensing distance:
- 0,3 6m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter- Receiver
- Emitter/Receiver Code:
- BX10SR/0C-HB6A
- Emitter Code:
- BX10S/00-HB6A
- Receiver Code:
- BX10R/CD-HB6A
- Output type:
- NPN + PNP
- Output Function:
- NC
- Switching frequency:
- 180Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 75mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 230g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
