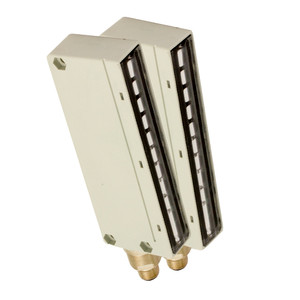

Datasensing BX10SR/0C-HB6XLS Sensors

The Datasensing BX10SR/0C-HB6XLS Sensors are a comprehensive area sensor kit designed for precision and reliability. Featuring 10 adjustable beams with a nominal sensing distance ranging from 0.3 to 4 meters, this kit is equipped with a trimmer for sensitivity adjustment, ensuring optimal performance in various applications. The sensors operate on an emitter-receiver principle, with a controlled height of 90mm and a minimum detectable object size of Ø 5mm. The BX10SR/0C-HB6XLS offers both NPN and PNP output types with a normally closed (NC) output function, and a switching frequency of 110Hz. It boasts a rapid response time of 500µs for light/dark transitions and 5ms for dark/light transitions. Operating within a voltage range of 10 to 26VDC, the sensors maintain a low no-load supply current of 75mA and a load current of up to 100mA, with a leakage current of just 10?A. Designed to withstand challenging environments, the sensors feature short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. The robust housing is made from PBT, with an active head material of PC, and offers mechanical protection rated at IP67. The sensors are equipped with LED indicators for easy status monitoring: green for power ON, yellow for output state, and red for alignment. The kit includes essential accessories such as 4 M18x1 nuts, an adjustment key, and 2 90° angled brackets, facilitating easy installation and setup. With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, the BX10SR/0C-HB6XLS Sensors are a reliable choice for industrial applications requiring precise area sensing capabilities.
