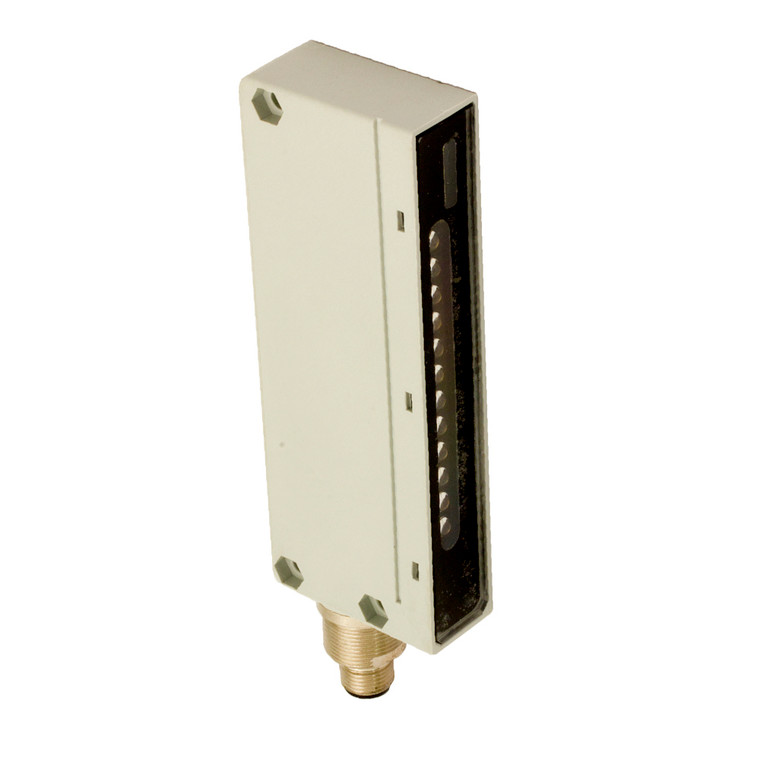

Datasensing BX80A/1P-0HAN Sensors
Datasensing
$569.43
The Datasensing BX80A/1P-0HAN Sensors are designed for precision and reliability in industrial environments. This area sensor receiver operates with a controlled height of 70 mm and an operating distance of up to 2 meters, making it ideal for various applications. It features a microprocessor-based circuit with sensitivity adjustment, housed in a robust cubic design with a special metallic enclosure for high-duty use. The sensor offers complete protection against electrical damages with an IP67 protection degree, ensuring durability in harsh conditions.
With a nominal sensing distance of 0 to 2 meters and a thermal drift of Sr ?10%, this sensor is equipped with 12 rays and a beam spacing of 6mm, capable of detecting objects as small as 6mm. It operates on a 12 to 24 VDC voltage range, with a PNP output type and NO/NC output function, providing a swift response time of 10ms. The sensor is designed with LED indicators for power, alignment, and output state, and includes short-circuit and reverse polarity protection.
The BX80A/1P-0HAN is built to withstand external light interference up to 1,500 lux from incandescent lamps and 4,500 lux from sunlight. It is approved with CE cULus Ex certifications and complies with EMC compatibility standards IEC 60947-5-2. The sensor is supplied with essential accessories, including two M18x1 nuts, an adjustment key, and a 90 angled bracket, ensuring easy installation and maintenance. With its robust design and advanced features, this sensor is a reliable choice for demanding industrial applications.
- Nominal sensing distance:
- 0 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Ø 6mm
- number of rays:
- 12
- Function Principle:
- Receiver
- Output type:
- PNP
- Output Function:
- NO/NC
- Response time:
- 10ms
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10µA
- Output voltage drop:
- ?1.2V Iload =100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON), red (alignment), yellow (output state)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
