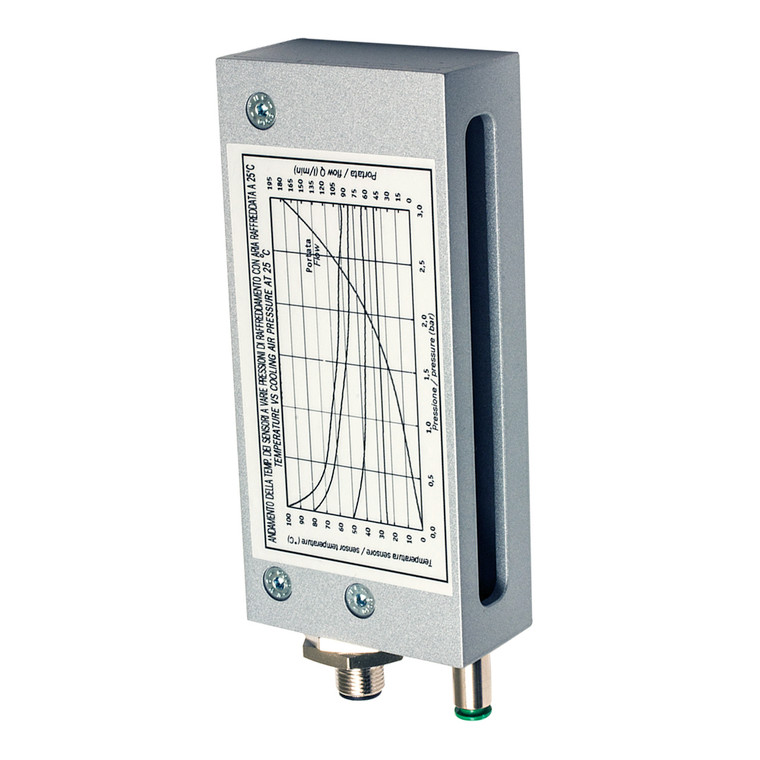

Datasensing BX80A/1P-1H Sensors
Datasensing
$699.97
The Datasensing BX80A/1P-1H Sensors are designed for high-performance area sensing applications, featuring a robust aluminium enclosure for enhanced durability. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are ideal for precise detection tasks. The microprocessor-based circuit allows for sensitivity adjustment, ensuring optimal performance in various environments. The sensor's strong cubic housing and metallic enclosure make it suitable for high-duty use, while the IP67 protection degree guarantees complete protection against electrical damages.
This sensor operates on a 12 to 24 VDC power supply and features a PNP output with NO/NC functionality. It boasts a fast response time of 10ms and is equipped with LED indicators for power, alignment, and output state. The BX80A/1P-1H is designed to withstand harsh conditions, with an operating temperature range of -25°C to +50°C and storage capabilities from -40°C to +80°C. It also includes short-circuit and reverse polarity protection, ensuring reliable operation.
The sensor's compact dimensions of 60mm x 132mm x 30mm and lightweight design (260 to 300g) make it easy to integrate into various systems. It comes with supplied accessories, including two M18x1 nuts, an adjustment key, and a 90° angled bracket for convenient installation. With approvals from CE and cULus, and compliance with EMC compatibility standards, the Datasensing BX80A/1P-1H Sensors are a reliable choice for industrial applications requiring precise and durable sensing solutions.
- Nominal sensing distance:
- 0 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Ø 6mm
- number of rays:
- 12
- Function Principle:
- Receiver
- Output type:
- PNP
- Output Function:
- NO/NC
- Response time:
- 10ms
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10µA
- Output voltage drop:
- ?1.2V Iload =100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON), red (alignment), yellow (output state)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 60mm x 132mm x 30mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 60x132x30
- Mechanical Protection:
- IP67
