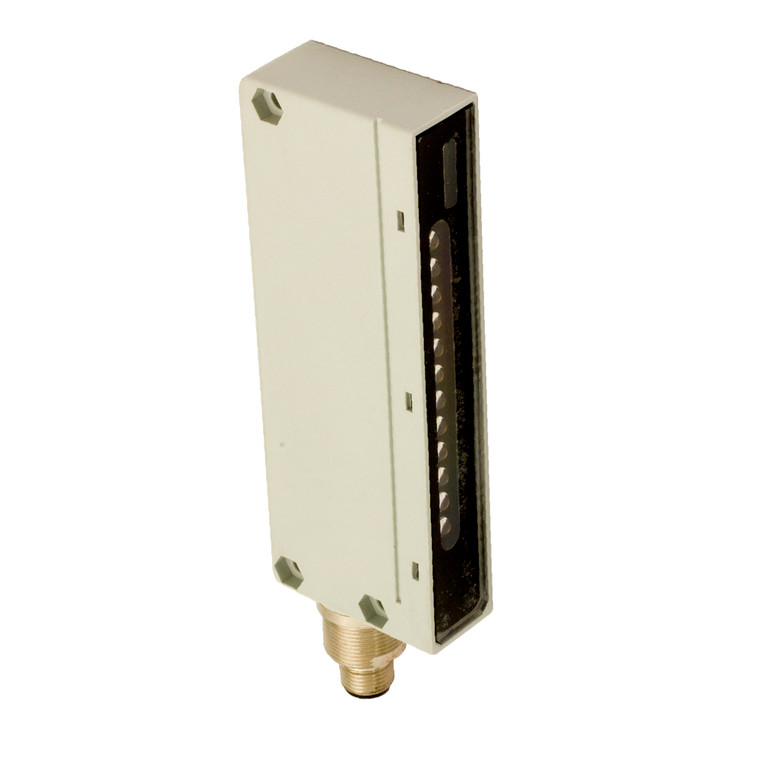

Datasensing BX80A/1P-2H Sensors

The Datasensing BX80A/1P-2H Sensors are designed for precision and reliability in demanding environments. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are equipped with a microprocessor-based circuit for enhanced sensitivity adjustment. The robust cubic housing, available in a special metallic enclosure, ensures durability and high-duty performance. Rated with an IP67 protection degree, these sensors offer complete protection against electrical damages, including short-circuit and reverse polarity protection. The BX80A/1P-2H features a nominal sensing distance of 0 to 2 meters, with a thermal drift of Sr ?10%. The sensor's 12 rays are spaced 6mm apart, allowing for the detection of objects as small as Ø 6mm. It operates on a voltage range of 12 to 24 VDC, with a no-load supply current of 50mA and a load current of ?100mA. The output type is PNP with NO/NC functionality, and the response time is a swift 10ms. LED indicators provide clear status updates: green for power ON, red for alignment, and yellow for output state. The sensor is designed to withstand external light interference up to 1,500 lux from incandescent lamps and 4,500 lux from sunlight. It also includes impulsive overvoltage protection and is compliant with EMC standards IEC 60947-5-2. The sensor's dimensions are 44mm x 120mm x 20mm, with a weight range of 260 to 300g. It is constructed from durable PBT housing material, with a glass active head, and features an M12 plug connection. The operating temperature range is -25°C to +50°C, with storage capabilities from -40°C to +80°C. Supplied accessories include two M18x1 nuts, an adjustment key, and a 90° angled bracket, ensuring easy installation and setup.
