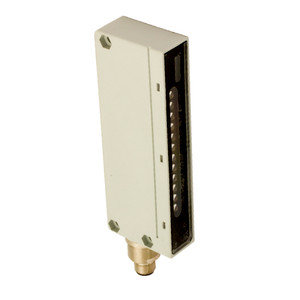

Datasensing BX80A/2N-0H Sensors

The Datasensing BX80A/2N-0H Sensors are designed for precision and reliability in demanding environments. This area sensor receiver features a controlled height of 70 mm and an operating distance of up to 2 meters, making it ideal for various industrial applications. The microprocessor-based circuit allows for sensitivity adjustment, ensuring accurate detection of objects as small as Ø 6mm. Housed in a robust cubic design, this sensor is available in a special metallic enclosure for high-duty use, providing complete protection against electrical damages with an IP67 protection degree. The sensor operates on a voltage range of 12 to 24 VDC, with a nominal sensing distance of 0 to 1.5 meters and a response time of 10ms. It features an NPN output type with NO/NC output functions, and is equipped with LED indicators for power, alignment, and output state. The sensor is designed to withstand harsh conditions, with a thermal drift of Sr ?10%, and is protected against short-circuits, reverse polarity, and impulsive overvoltage. With a compact size of 44mm x 120mm x 20mm and a weight of 260 to 300g, the sensor is easy to install using the M12 plug connections and supplied accessories, including two M18x1 nuts, an adjustment key, and a 90° angled bracket. It operates efficiently in temperatures ranging from -25°C to +50°C and can be stored in temperatures as low as -40°C and as high as +80°C. The Datasensing BX80A/2N-0H Sensors are CE and cULus approved, ensuring compliance with international standards for electromagnetic compatibility and mechanical protection.
