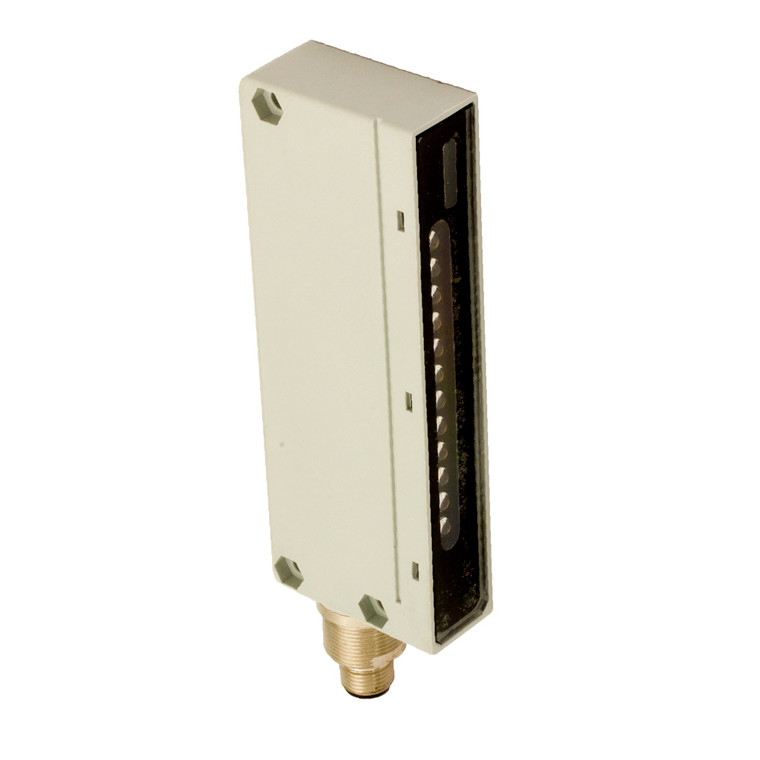

Datasensing BX80A/2P-0H Sensors

The Datasensing BX80A/2P-0H Sensors are designed for precision and reliability in demanding environments. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are equipped with a microprocessor-based circuit for enhanced performance. The sensitivity adjustment feature allows for fine-tuning to suit specific applications, while the strong cubic housing ensures durability. This special version comes with a metallic enclosure for high-duty use, providing complete protection against electrical damages with an IP67 protection degree. The sensors operate on a voltage range of 12 to 24 VDC, with a nominal sensing distance of 0 to 1.5 meters. They feature a PNP output type with NO/NC output functions and a quick response time of 10ms. The sensors are equipped with LED indicators for power, alignment, and output state, ensuring easy monitoring. They offer robust protection features, including short-circuit protection with auto reset, reverse polarity protection, and impulsive overvoltage protection. Constructed with a PBT housing and a PC active head material, the sensors are designed to withstand operating temperatures from -25°C to +50°C and storage temperatures from -40°C to +80°C. They are EMC compatible with IEC 60947-5-2 standards and have been approved by CE and cULus. The package includes two M18x1 nuts, an adjustment key, and a 90° angled bracket for easy installation. With a compact design measuring 45x145x20 mm and a weight range of 260 to 300 grams, these sensors are ideal for applications requiring high precision and reliability.
