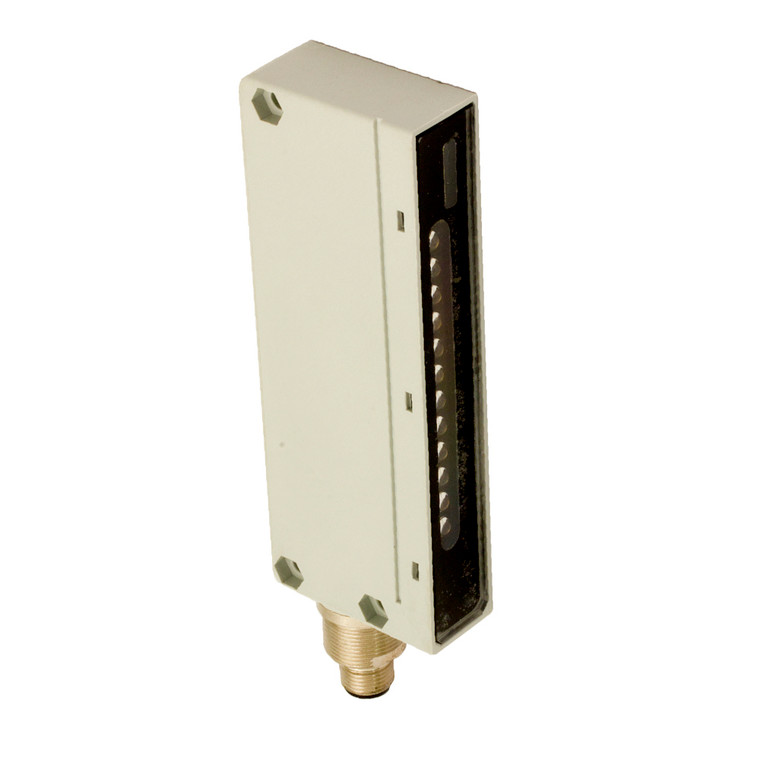

Datasensing BX80A/3P-2H Sensors
Datasensing
$525.25
The Datasensing BX80A/3P-2H Sensors are designed for precision and reliability in industrial applications. This area sensor receiver features a controlled height of 70 mm and an operating distance of up to 2 meters, making it ideal for detecting objects with a minimum size of 6mm. The sensor is equipped with a microprocessor-based circuit and offers sensitivity adjustment for enhanced performance. Its robust cubic housing, with a special metallic enclosure, ensures durability and high-duty use, while the IP67 protection degree provides complete protection against electrical damages.
The BX80A/3P-2H operates on a 12 to 24 VDC power supply and features a PNP output type with NO/NC output functions. It boasts a fast response time of 3ms and includes LED indicators for power, alignment, and output state. The sensor is designed with short-circuit and reverse polarity protection, and it can withstand interference from external light sources up to 4,500 lux. With a compact design measuring 44mm x 120mm x 20mm and a weight of 260 to 300g, it is easy to integrate into various setups. The sensor is constructed with a PBT housing and glass active head material, ensuring long-lasting performance even in challenging environments. It comes with supplied accessories, including two M18x1 nuts, an adjustment key, and a 90 angled bracket, for easy installation and setup.
- Nominal sensing distance:
- 0 1m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Ø 6mm
- number of rays:
- 12
- Function Principle:
- Receiver
- Output type:
- PNP
- Output Function:
- NO/NC
- Response time:
- 3ms
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10µA
- Output voltage drop:
- ?1.2V Iload =100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON), red (alignment), yellow (output state)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
