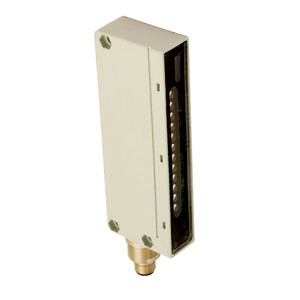

Datasensing BX80A/4P-0H Sensors
Datasensing
$487.59
The Datasensing BX80A/4P-0H Sensors are designed for precision and reliability in demanding environments. This area sensor receiver features a controlled height of 70 mm and an operating distance of up to 2 meters, making it ideal for various industrial applications. The microprocessor-based circuit allows for sensitivity adjustment, ensuring accurate detection with a nominal sensing distance of 30 to 600 mm. The sensor is housed in a robust cubic design with a special metallic enclosure for high-duty use, providing complete protection against electrical damages and a degree of protection rated at IP67.
Equipped with PNP NO/NC output functions, the sensor offers a fast response time of 2ms and operates on a voltage range of 12 to 24 VDC. It includes LED indicators for power, alignment, and output state, ensuring easy monitoring and setup. The sensor is designed to withstand harsh conditions, with an operating temperature range of -25°C to +50°C and storage capabilities from -40°C to +80°C. It also features short-circuit and reverse polarity protection, as well as resistance to external light interference up to 4,500 lux.
The BX80A/4P-0H comes with supplied accessories, including two M18x1 nuts, an adjustment key, and a 90° angled bracket, facilitating easy installation and maintenance. With approvals from CE and cULus, and compliance with EMC compatibility standards IEC 60947-5-2, this sensor is a reliable choice for ensuring safety and efficiency in your operations.
- Nominal sensing distance:
- 30 600mm
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Ø 6mm
- number of rays:
- 12
- Function Principle:
- Receiver
- Output type:
- PNP
- Output Function:
- NO/NC
- Response time:
- 2ms
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10µA
- Output voltage drop:
- ?1.2V Iload =100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON), red (alignment), yellow (output state)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
