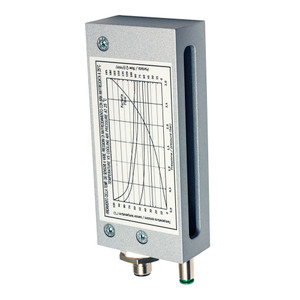

Datasensing BX80B/3P-1H Sensors

The Datasensing BX80B/3P-1H Sensors are designed for precision and reliability in industrial applications. This area sensor receiver features a crossed beam with a controlled height of 70 mm and an operating distance of up to 2 meters. It is equipped with a microprocessor-based circuit for enhanced performance and sensitivity adjustment, ensuring accurate detection of objects as small as Ø 5mm. The sensor's robust cubic housing is made from a strong aluminium enclosure, making it ideal for high-duty use. With a nominal sensing distance of 0.5 to 1 meter and a response time of just 3ms, this sensor is both fast and efficient. It operates on a voltage range of 12 to 24 VDC and includes a PNP output type with NO/NC output functions. The sensor is protected against electrical damages with features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The BX80B/3P-1H is designed to withstand harsh environments, with an IP67 protection degree and resistance to shocks and vibrations as per IEC EN 60947-5-2 standards. It can operate in temperatures ranging from -25°C to +50°C and can be stored in temperatures as low as -40°C. The sensor is equipped with LED indicators for power, alignment, and output state, and comes with supplied accessories including two M18x1 nuts, an adjustment key, and a 90° angled bracket for easy installation. This sensor is CE and cULus approved, ensuring compliance with international safety standards, and is EMC compatible with IEC 60947-5-2. Its compact dimensions of 60mm x 132mm x 30mm and lightweight design make it a versatile choice for various industrial applications.
