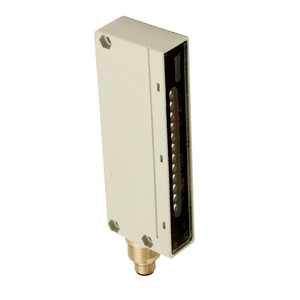

Datasensing BX80S/10-1A Sensors

The Datasensing BX80S/10-1A Sensors are designed for high-performance area sensing applications, featuring a robust aluminium enclosure for enhanced durability. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are ideal for precise detection tasks. The microprocessor-based circuit allows for sensitivity adjustment, ensuring optimal performance in various environments. The strong cubic housing and metallic enclosure make it suitable for high-duty use, while the IP67 protection degree guarantees complete protection against electrical damages. The sensor operates on a 12…24 VDC voltage range, with a no-load supply current of 100mA and a maximum ripple content of ? 10%. It includes green LED indicators for power status and offers short-circuit and reverse polarity protection. The infrared emission at 880nm ensures reliable performance, even in challenging lighting conditions, with interference resistance up to 1,500 lux from incandescent lamps and 4,500 lux from sunlight. The sensor is equipped with a 2-meter PVC cable for easy installation and comes with supplied accessories, including two M18x1 nuts, an adjustment key, and a 90° angled bracket. It is CE cULus approved and complies with IEC 60947-5-2 standards for EMC compatibility, shocks, and vibrations. The Datasensing BX80S/10-1A Sensors are built to withstand operating temperatures from -25°C to +50°C and storage temperatures from -40°C to +80°C, making them a reliable choice for various industrial applications.
