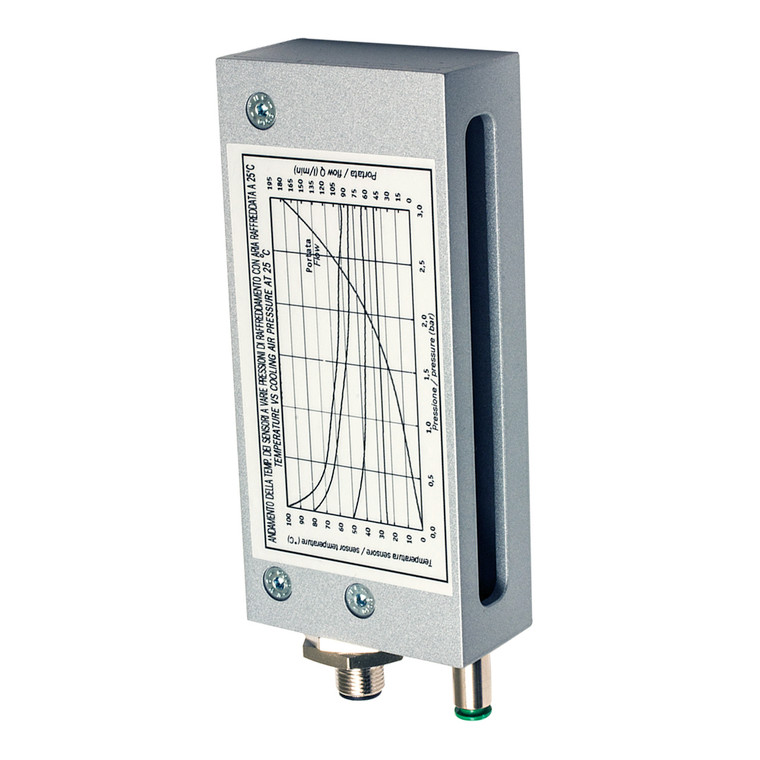

Datasensing BX80S/10-1H6X Sensors
Datasensing
$632.08
The Datasensing BX80S/10-1H6X Sensors are designed for high-performance area sensing applications. Featuring a robust aluminium enclosure, these sensors are built to withstand demanding environments with a protection degree of IP67, ensuring complete protection against electrical damages. The sensor operates with a controlled height of 70 mm and an operating distance of up to 2 meters, making it ideal for precise detection tasks.
Equipped with a microprocessor-based circuit, the BX80S/10-1H6X offers sensitivity adjustment for tailored performance. It emits infrared light at 880nm and is resistant to external light interference, withstanding up to 1,500 lux from incandescent lamps and 4,500 lux from sunlight. The sensor's cubic housing is designed for durability, and its metallic enclosure is suited for high-duty use.
The sensor operates on a voltage range of 12 to 24 VDC, with a no-load supply current of 100mA and a maximum ripple content of ? 10%. It features LED indicators for power status, short-circuit protection with auto reset, and reverse polarity protection. The device is compatible with IEC 60947-5-2 standards for EMC and mechanical protection, ensuring reliable performance in various industrial settings.
With dimensions of 60mm x 132mm x 30mm and a weight range of 260 to 300g, the BX80S/10-1H6X is compact yet sturdy. It includes supplied accessories such as two M18x1 nuts, an adjustment key, and a 90° angled bracket for easy installation. The sensor is approved by CE and cULus, making it a trusted choice for professionals seeking reliable and efficient sensing solutions.
- Nominal sensing distance:
- depending on the receiver
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Depending on the receiver
- number of rays:
- 12
- Sensitivity adjustment:
- Yes
- Function Principle:
- Emitter
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 60mm x 132mm x 30mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 60x132x30
- Mechanical Protection:
- IP67
