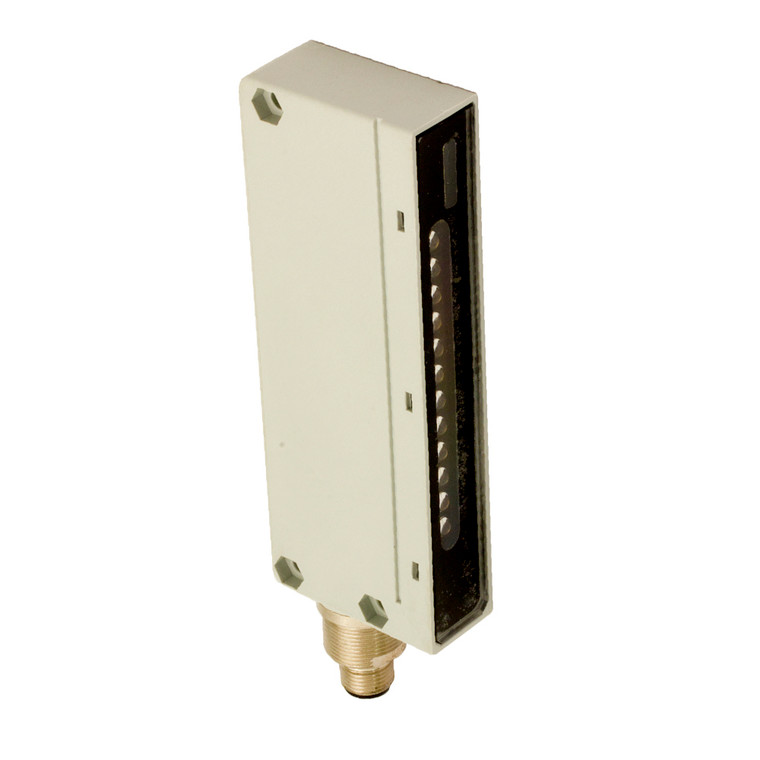

The Datasensing BX80S/10-1HDA Sensors are designed for high-performance area sensing applications. Featuring a robust aluminium enclosure with a glass optic, these sensors offer a controlled height of 70 mm and an operating distance of up to 2 meters. The microprocessor-based circuit ensures precise sensitivity adjustment, making it ideal for demanding environments. With a strong cubic housing and a special metallic enclosure, this sensor is built for high-duty use and offers complete protection against electrical damages. It operates on a voltage range of 12 to 24 VDC and includes features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The sensor is equipped with LED indicators for power status and is designed to withstand external light interference up to 4,500 lux. It is compliant with CE and cULus approvals and meets EMC compatibility standards. The sensor's compact dimensions of 60mm x 132mm x 30mm and lightweight design make it easy to integrate into various systems. Supplied with essential accessories, including nuts, an adjustment key, and angled brackets, the Datasensing BX80S/10-1HDA Sensors are a reliable choice for precise and durable area sensing solutions.
- Nominal sensing distance:
- depending on the receiver
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Depending on the receiver
- number of rays:
- 12
- Sensitivity adjustment:
- Yes
- Function Principle:
- Emitter
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 60mm x 132mm x 30mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 60x132x30
- Mechanical Protection:
- IP67
