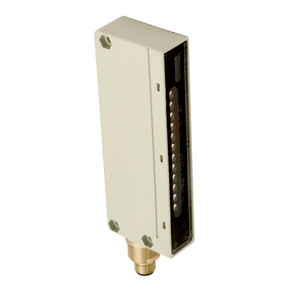

Datasensing BX80S/20-0H Sensors

The Datasensing BX80S/20-0H Sensors are designed for precision and reliability in demanding environments. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are equipped with a microprocessor-based circuit for enhanced performance. The sensitivity adjustment feature allows for fine-tuning to suit specific applications, while the strong cubic housing and metallic enclosure ensure durability in high-duty use. The sensors offer complete protection against electrical damages, including short-circuit and reverse polarity protection, and are rated with a protection degree of IP67. The BX80S/20-0H Sensors operate on a voltage range of 12 to 24 VDC, with a no-load supply current of 100mA and a maximum ripple content of ? 10%. They feature LED indicators for power status, a time delay before availability of 500ms, and are equipped with infrared emission at 880nm. The sensors are resistant to external light interference, withstanding up to 1,500 lux from incandescent lamps and 4,500 lux from sunlight. Constructed with a PBT housing and a PC active head material, these sensors are built to withstand operating temperatures from -25°C to +50°C and storage temperatures from -40°C to +80°C. They come with supplied accessories including two M18x1 nuts, an adjustment key, and a 90° angled bracket for easy installation. The BX80S/20-0H Sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring they meet rigorous safety and performance standards.
