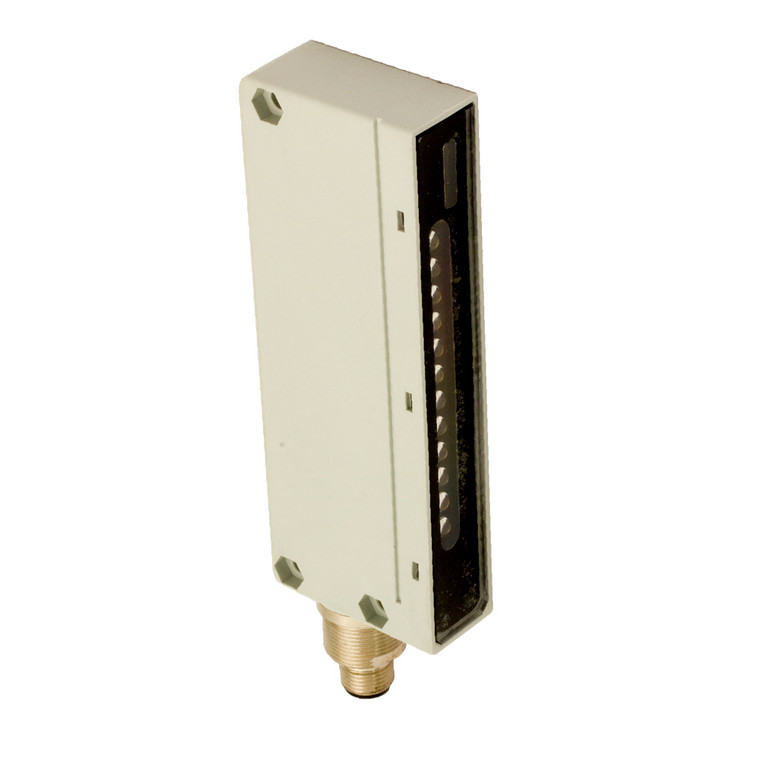

Datasensing BX80S/40-0H Sensors
Datasensing
$351.91
The Datasensing BX80S/40-0H Sensors are designed for precision and reliability in demanding environments. These area sensors feature an adjustable emitter with a nominal sensing distance that varies depending on the receiver, ensuring flexibility in various applications. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are equipped with a microprocessor-based circuit for enhanced performance. The strong cubic housing, made from durable PBT material, is complemented by a special metallic enclosure for high-duty use, providing robust protection with an IP67 rating.
The BX80S/40-0H Sensors offer sensitivity adjustment and are equipped with 12 rays spaced 6mm apart, ensuring accurate detection. Operating on a voltage range of 12 to 24 VDC, these sensors have a no-load supply current of 100mA and a maximum ripple content of ? 10%. The green LED indicator signals power ON status, while the device includes short-circuit and reverse polarity protection for added safety.
Designed to withstand harsh conditions, these sensors operate efficiently in temperatures ranging from -25°C to +50°C and can be stored in temperatures as low as -40°C. The sensors are resistant to shocks and vibrations, complying with IEC EN 60947-5-2 standards, and are approved by CE and cULus. Supplied with two M18x1 nuts, an adjustment key, and a 90° angled bracket, the BX80S/40-0H Sensors are ready for seamless integration into your system.
- Nominal sensing distance:
- depending on the receiver
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- number of rays:
- 12
- Sensitivity adjustment:
- Yes
- Function Principle:
- Emitter
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
