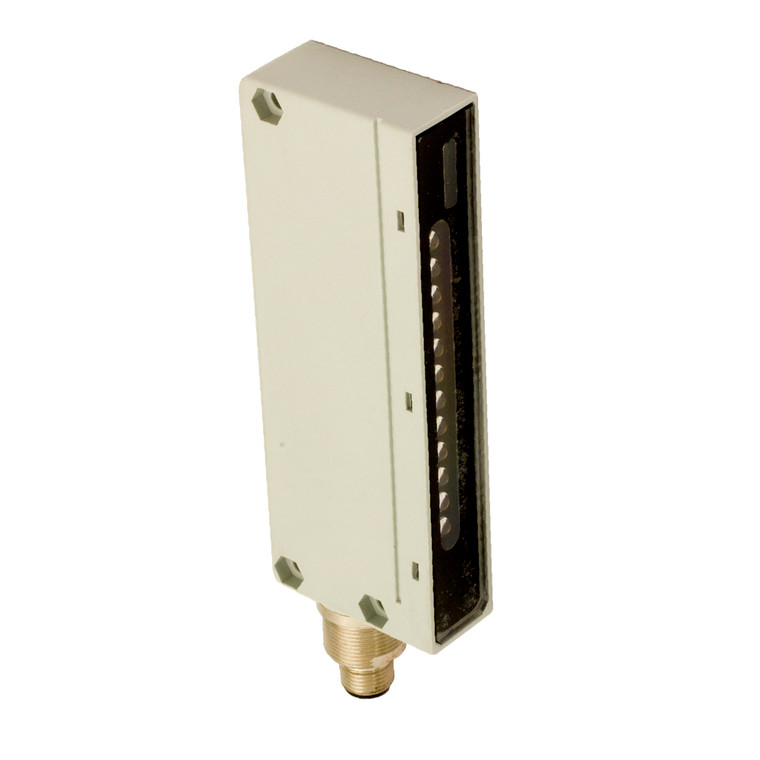

Datasensing BX80S/50-0H3E Sensors
Datasensing
$479.41
The Datasensing BX80S/50-0H3E Sensors are designed for precise enveloped detection with an adjustable emission range of 200 to 500 mm and a rapid response time of 10ms. These area sensors feature a controlled height of 70 mm and can operate over distances up to 2 meters, making them ideal for various industrial applications. Built with a robust cubic housing and a special metallic enclosure, they are engineered for high-duty use and offer complete protection against electrical damages with an IP67 protection degree.
Equipped with a microprocessor-based circuit, these sensors allow for sensitivity adjustment to ensure optimal performance. They are powered by a 12 to 24 VDC operating voltage and have a no-load supply current of 100mA. The sensors include green LED indicators for power status and are protected against short-circuits, reverse polarity, and impulsive overvoltage.
The BX80S/50-0H3E Sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +50°C and storage capabilities from -40°C to +80°C. They are constructed with durable materials, including a PBT housing and a PC active head, and come with an M12 4-pin connector for easy installation. The package includes two M18x1 nuts, an adjustment key, and a 90° angled bracket for versatile mounting options. Certified with CE and cULus approvals, these sensors meet EMC compatibility standards and are resistant to shocks and vibrations as per IEC EN 60947-5-2.
- Nominal sensing distance:
- depending on the receiver
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- number of rays:
- 12
- Sensitivity adjustment:
- Yes
- Function Principle:
- Emitter
- Output type:
- Emitter
- Output Function:
- Emitter
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
