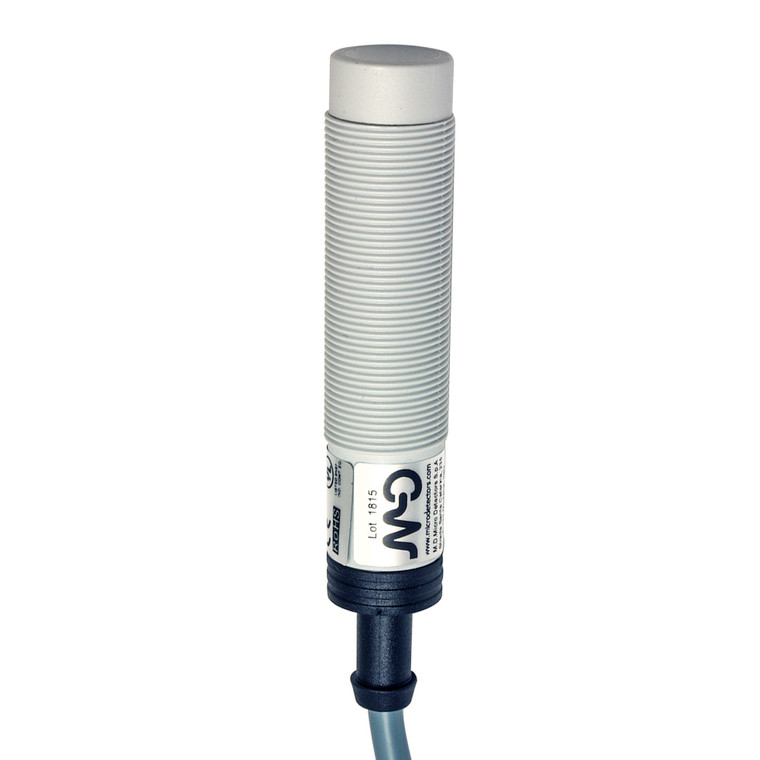

Datasensing C18P/BN-2A Sensors
Datasensing
$133.79
The Datasensing C18P/BN-2A Sensors are high-performance capacitive sensors designed for precise detection in various industrial applications. Featuring an M18 plastic unshielded design, these sensors offer a nominal sensing distance of 3 to 12mm with a thermal drift of less than 20%. The sensors are equipped with adjustable sensitivity, allowing for fine-tuning to meet specific requirements. With a robust plastic housing and a 2m PVC cable connection, they ensure durability and ease of installation.
These sensors operate on a DC voltage range of 10 to 40V and are characterized by high noise immunity, making them suitable for environments with electrical interference. The output type is NPN with both NO and NC functions, providing flexibility in integration. They support a switching frequency of 50Hz and have a no-load supply current of ? 12mA, ensuring energy efficiency.
The C18P/BN-2A Sensors are equipped with a yellow LED indicator for object detection, and they feature comprehensive protection mechanisms, including short-circuit, reverse polarity, and impulsive overvoltage protection. With a degree of protection rated at IP67 and IP68, these sensors are resistant to dust and water ingress, making them ideal for harsh conditions.
Additional features include a repeat accuracy of 5%, a hysteresis of ? 20%, and a maximum ripple content of ?10%. The sensors are supplied with a screwdriver and two M18 nuts for convenient mounting. They comply with CE and cULus approvals and meet EMC compatibility standards as per IEC 60947-5-2. Withstanding operating temperatures from -35°C to +85°C, these sensors are built to perform reliably in extreme conditions.
- Nominal sensing distance:
- 3 12mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- NPN
- Output Function:
- NO + NC
- Switching frequency:
- 50Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- ? 2,5V @ IL = 200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- polarity reversal, overvoltage
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 150g
- Housing Material:
- Polyester
- Connections:
- 2m PVC cable
- Active Head Material:
- Polyester
- Tightening torque:
- 2,6Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67, IP68
- Supplied Accessories:
- screw driver, 2 x M18 nuts
- Mechanical Protection:
- IP67, IP68
