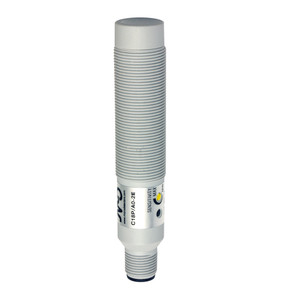

Datasensing C18P/C0-2E Sensors

The Datasensing C18P/C0-2E Sensors are high-performance capacitive sensors designed for reliable detection in various industrial applications. Featuring an M18 plastic unshielded housing, these sensors offer a nominal sensing distance of 3 to 12mm with a thermal drift of less than 20%. They are equipped with adjustable sensitivity and a repeat accuracy of 5%, ensuring precise operation. The sensors operate on a wide AC voltage range of 20 to 250Vac at 50-60Hz, with a switching frequency of 10Hz. Built with high noise immunity, the C18P/C0-2E sensors include an SCR output type with a normally closed (NC) output function. They support a load current of up to 500mA, with a maximum of 2.5A for 20ms, and feature a low leakage current of ? 100µA. The output voltage drop is minimal at ? 10VAC for load currents ?20mA. Designed for durability, these sensors are housed in a robust polyester material, providing IP67 and IP68 mechanical protection. They are resistant to shocks and vibrations as per IEC standards and can operate in temperatures ranging from -35°C to +85°C. The sensors come with an M12 plug connection and include a screw driver and two M18 nuts for easy installation. With approvals from CE and cULus, and EMC compatibility with IEC 60947-5-2, the Datasensing C18P/C0-2E Sensors are a reliable choice for demanding environments, offering features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The yellow LED indicator provides a clear signal when an object is detected, ensuring efficient monitoring and control in your applications.
