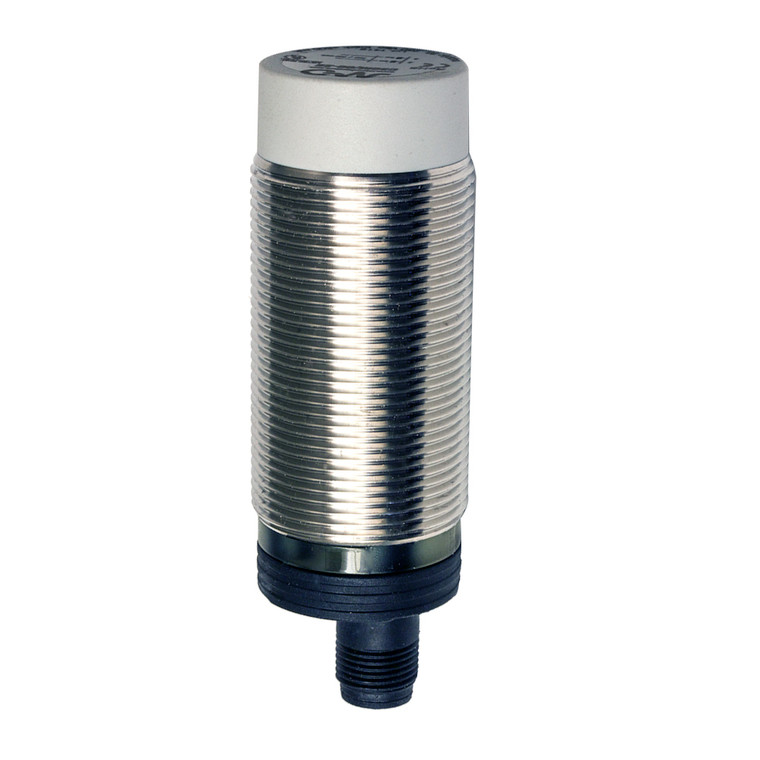

The Datasensing C30M/00-2E Sensors are high-performance capacitive sensors designed for versatile applications. Featuring a robust M30 Inox unshielded design, these sensors offer a nominal sensing distance of 4 to 25mm with a thermal drift of Sr less than 20%. They are equipped with adjustable sensitivity, allowing for precise detection in various environments. The sensors operate on a wide voltage range of 20 to 250Vac at 50-60Hz, ensuring compatibility with different power systems.
Built with high noise immunity, the C30M/00-2E sensors are available in both shielded and unshielded models, housed in durable AISI 304 stainless steel or plastic. The output type is SCR with NO/NC functions, supporting a switching frequency of 10Hz. These sensors are designed with a maximum load current of 2.5A and a no-load supply current of ? 12mA, ensuring efficient performance.
The sensors feature a yellow LED indicator for object detection and are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced reliability. With a degree of protection rated at IP67, they are suitable for harsh environments, operating within a temperature range of -25°C to +80°C. The sensors come with supplied accessories, including a screwdriver and two M30 nuts, for easy installation. Approved by CE and cULus, and compliant with EMC compatibility standards IEC 60947-5-2, these sensors are a reliable choice for industrial applications.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- SCR
- Output Function:
- NO/NC
- Switching frequency:
- 10Hz
- Operating Voltage:
- 20...250Vac/50-60Hz
- No-Load supply current:
- ? 12mA
- Load current:
- 2,5A max (20ms)
- Leakage current:
- ? 100µA
- Output voltage drop:
- 10VAC @ IL?200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 150g
- Housing Material:
- AISI 304 stainless steel
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
