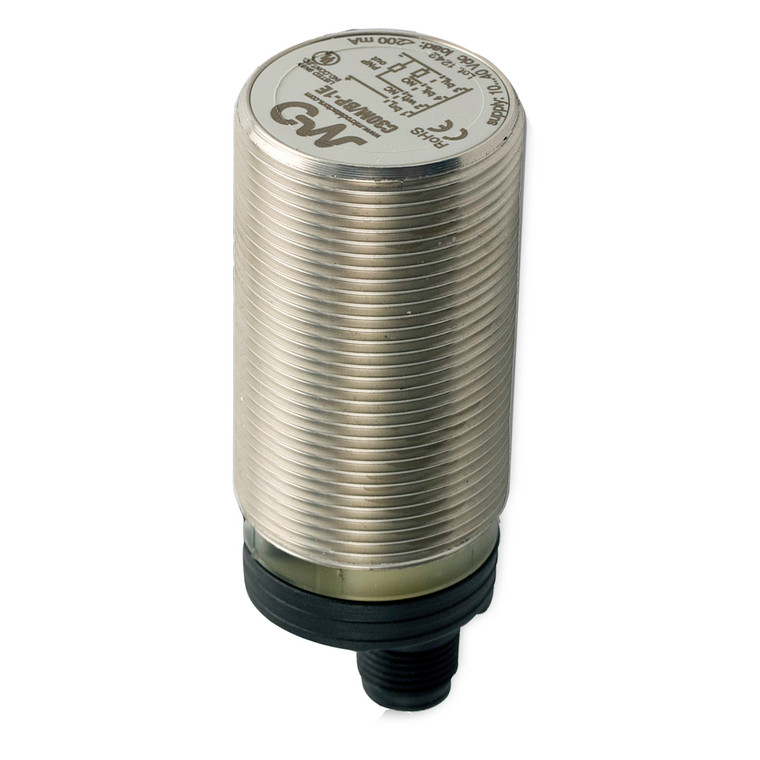

Datasensing C30M/BN-1E Sensors

The Datasensing C30M/BN-1E Sensors are high-performance capacitive sensors designed for precision and reliability in various industrial applications. Featuring a robust AISI 304 stainless steel housing, these sensors are built to withstand harsh environments with an IP67 protection rating. The M30 Inox Shielded DC model offers a nominal sensing distance of 2 to 16mm, ensuring accurate detection with minimal thermal drift of less than 20%. Equipped with both Normally Open (NO) and Normally Closed (NC) output functions, the sensor provides versatile integration options with an NPN output type. The adjustable sensitivity feature allows for fine-tuning to meet specific application needs, while the high noise immunity ensures stable performance even in electrically noisy environments. The sensor operates on a DC supply voltage range of 10 to 40V, with a no-load supply current of ? 12mA and a load current capacity of up to 200mA. It includes essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection, enhancing its durability and reliability. With a switching frequency of 30Hz and a repeat accuracy of 5%, the C30M/BN-1E ensures quick and precise response times. The yellow LED indicator provides a clear visual signal when an object is detected. The sensor's compact design, with dimensions of M30 and a length of 79mm, allows for easy installation using the included M12 plug connection and supplied accessories like a screwdriver and M30 nuts. Ideal for use in temperatures ranging from -25°C to +80°C, the sensor is also designed to withstand storage conditions as low as -40°C and as high as +85°C. Compliant with CE and cULus approvals and EMC compatibility standards, the Datasensing C30M/BN-1E Sensors are a reliable choice for demanding industrial sensing applications.
