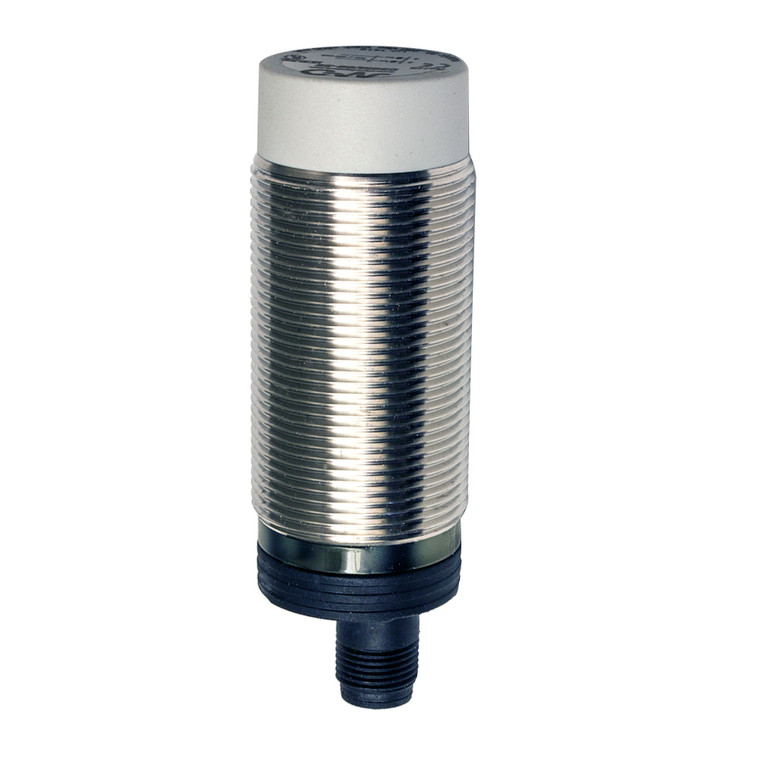

Datasensing C30M/BN-2E Sensors
Datasensing
$180.80
The Datasensing C30M/BN-2E Sensors are high-performance capacitive sensors designed for precision and reliability in various industrial applications. Featuring a robust AISI 304 stainless steel housing, these sensors are built to withstand harsh environments with an IP67 protection rating. The unshielded M30 design offers a nominal sensing distance of 4 to 25mm, with adjustable sensitivity to cater to specific needs.
Equipped with NPN NO+NC output functions, the sensors operate efficiently with a DC supply voltage range of 10 to 40Vdc. They boast a high noise immunity and a switching frequency of 30Hz, ensuring accurate and consistent performance. The sensors are designed with a low no-load supply current of ? 12mA and a load current capacity of ? 200mA, making them energy-efficient.
The C30M/BN-2E sensors feature a yellow LED indicator for object detection, and they come with built-in protections against short-circuits, reverse polarity, and impulsive overvoltage. The sensors are easy to install with an M12 plug connection and come with supplied accessories, including a screwdriver and two M30 nuts.
With a repeat accuracy of 5% and a thermal drift of Sr < 20%, these sensors ensure reliable operation across a wide temperature range of -25°C to +80°C. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, making them a dependable choice for industrial automation and control systems.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- NPN
- Output Function:
- NO + NC
- Switching frequency:
- 30Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 2,5Vmax @ IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 150g
- Housing Material:
- AISI 304 stainless steel
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
