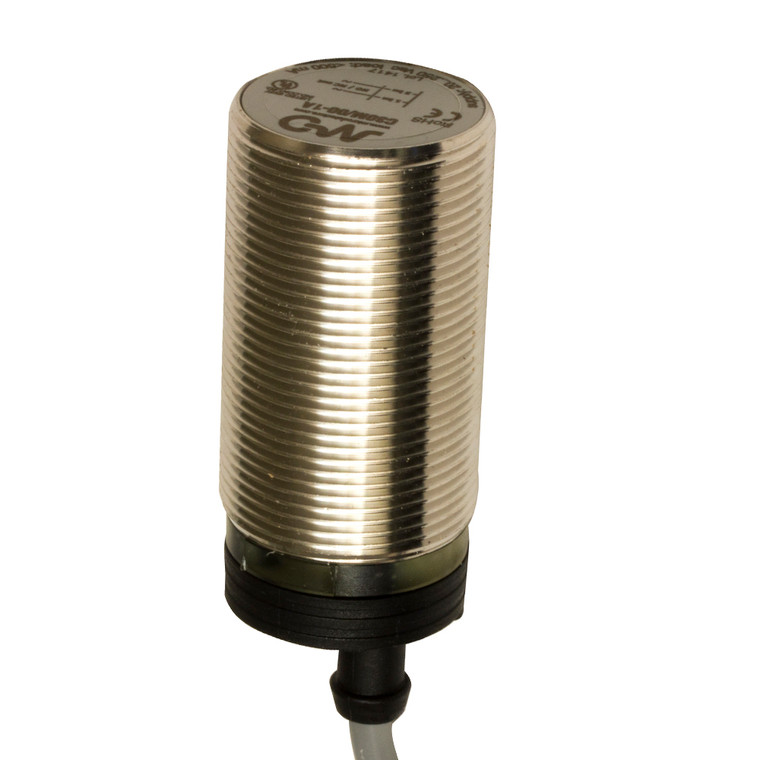

Datasensing C30M/BP-1A Sensors
Datasensing
$191.76
The Datasensing C30M/BP-1A Sensors are designed for precision and reliability in various industrial applications. These capacitive sensors feature a robust M30 Inox shielded design, ensuring durability and resistance to harsh environments. With a nominal sensing distance ranging from 2 to 16mm, they offer high noise immunity and adjustable sensitivity for optimal performance. The sensors operate on a DC supply voltage of 10 to 40V, with a PNP output type and NO + NC output function, making them versatile for different setups.
Equipped with a 2m axial PVC cable, these sensors are easy to install and maintain. They boast a high switching frequency of 30Hz and a repeat accuracy of 5%, ensuring consistent and reliable operation. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, enhancing their longevity and safety.
Constructed with AISI 304 stainless steel housing and a polyester active head, the sensors are built to withstand temperatures from -25°C to +80°C, with a storage temperature range of -40°C to +85°C. They are IP67 rated for mechanical protection, making them suitable for use in demanding environments. The sensors come with supplied accessories, including a screwdriver and two M30 nuts, for easy installation. With CE and cULus approvals and EMC compatibility with IEC 60947-5-2, these sensors meet high standards of quality and performance.
- Nominal sensing distance:
- 2 16mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 30Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 2,5Vmax @ IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Shielded
- Weight:
- 230g
- Housing Material:
- AISI 304 stainless steel
- Connections:
- 2m PVC cable
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
