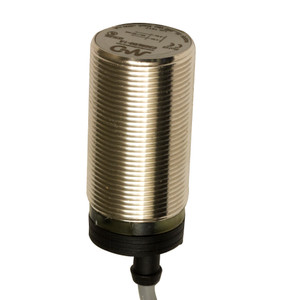

Datasensing C30M/BP-2A Sensors
Datasensing
$183.17
The Datasensing C30M/BP-2A Sensors are high-performance capacitive sensors designed for precision and reliability in various industrial applications. Featuring an M30 Inox unshielded design, these sensors offer a nominal sensing distance of 4 to 25mm with a thermal drift of less than 20%. They are equipped with adjustable sensitivity, allowing for fine-tuning to meet specific operational needs. The sensors operate on a DC supply voltage ranging from 10 to 40Vdc and boast a high noise immunity, making them suitable for environments with electrical interference.
With a robust AISI 304 stainless steel housing and a polyester active head, the C30M/BP-2A sensors are built to withstand harsh conditions, offering an operating temperature range of -25°C to +80°C and a storage temperature range of -40°C to +85°C. The sensors are IP67 rated, ensuring protection against dust and water ingress, and are compliant with EMC standards IEC 60947-5-2.
The sensors feature a PNP output type with both NO and NC output functions, a switching frequency of 30Hz, and a no-load supply current of ? 12mA. They are equipped with a yellow LED indicator for object detection and include short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced safety and reliability.
Installation is straightforward with the included 2m PVC cable and supplied accessories, which include a screwdriver and two M30 nuts. The sensors are designed for unshielded mounting and have a tightening torque of 50Nm. With approvals from CE and cULus, the Datasensing C30M/BP-2A Sensors are a dependable choice for your sensing needs.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 30Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 2,5Vmax @ IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 230g
- Housing Material:
- AISI 304 stainless steel
- Connections:
- 2m PVC cable
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
