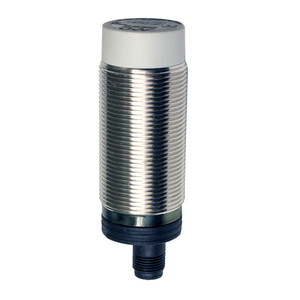

Datasensing C30M/BP-2E Sensors
Datasensing
$172.19
The Datasensing C30M/BP-2E Sensors are high-performance capacitive sensors designed for precision and reliability in various industrial applications. Featuring a robust AISI 304 stainless steel housing, these sensors are built to withstand harsh environments with an IP67 protection rating. The M30 Inox unshielded design offers a nominal sensing distance of 4 to 25mm, with adjustable sensitivity to cater to specific needs.
Equipped with a PNP output type and NO + NC output function, these sensors ensure versatile connectivity options. The sensors operate efficiently within a voltage range of 10 to 40Vdc, with a low no-load supply current of ? 12mA and a load current capacity of ? 200mA. The yellow LED indicator provides a clear visual signal when an object is detected, enhancing operational efficiency.
With a high noise immunity and the ability to handle a switching frequency of 30Hz, the C30M/BP-2E sensors are ideal for dynamic environments. They feature short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The sensors are easy to install with an M12 plug connection and come with supplied accessories, including a screwdriver and two M30 nuts, for convenient setup.
Designed to operate in temperatures ranging from -25°C to +80°C, these sensors maintain performance without freezing, making them suitable for a wide range of applications. The C30M/BP-2E sensors are CE and cULus approved, meeting international standards for quality and safety.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 30Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 2,5Vmax @ IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 150g
- Housing Material:
- AISI 304 stainless steel
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
