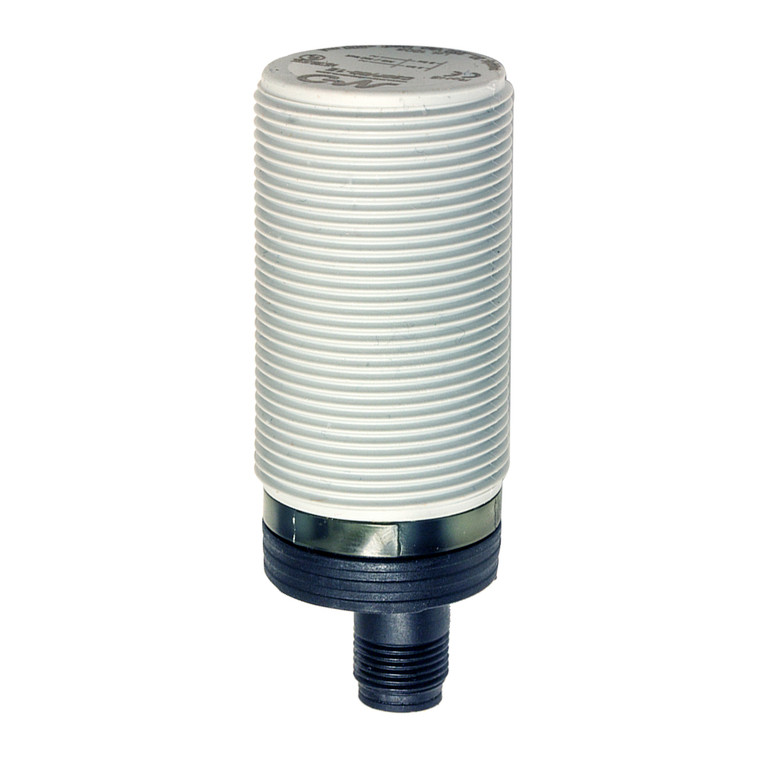

Datasensing C30P/00-1E Sensors
Datasensing
$204.52
The Datasensing C30P/00-1E Sensors are high-performance capacitive sensors designed for versatile applications. Featuring a robust M30 plastic shielded housing, these sensors offer a nominal sensing distance of 2 to 16mm with minimal thermal drift and a repeat accuracy of 5%. They are equipped with adjustable sensitivity and can operate on both DC and AC supply voltages, ensuring high noise immunity and reliable performance in various environments.
These sensors come with a NO/NC output function and a switching frequency of 10Hz, making them suitable for dynamic applications. The SCR output type supports a load current of up to 2.5A, with a low leakage current of ? 100µA and an output voltage drop of 10VAC at IL?200mA. The sensors are designed with safety in mind, featuring short-circuit, reverse polarity, and impulsive overvoltage protection.
The C30P/00-1E Sensors are easy to install with an M12 plug connection and come with supplied accessories, including a screwdriver and two M30 nuts. They are built to withstand harsh conditions, with an operating temperature range of -25°C to +80°C and a storage temperature range of -40°C to +85°C. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring reliable operation in industrial settings. With an IP67 degree of protection, these sensors are resistant to dust and water, making them ideal for demanding environments.
- Nominal sensing distance:
- 2 16mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- SCR
- Output Function:
- NO/NC
- Switching frequency:
- 10Hz
- Operating Voltage:
- 20...250Vac/50-60Hz
- No-Load supply current:
- ? 12mA
- Load current:
- 2,5A max (20ms)
- Leakage current:
- ? 100µA
- Output voltage drop:
- 10VAC @ IL?200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Shielded
- Weight:
- 100g
- Housing Material:
- Polyester
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
