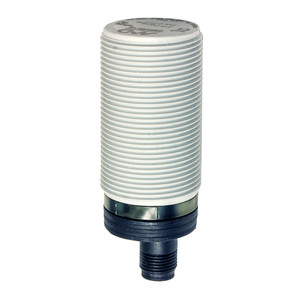

The Datasensing C30P/00-2A Sensors are high-performance capacitive sensors designed for versatile applications. Featuring a robust M30 plastic unshielded housing, these sensors offer a nominal sensing distance of 4 to 25mm, making them ideal for detecting a wide range of materials. With both NO and NC output functions, they provide flexibility in various operational settings. The sensors are equipped with adjustable sensitivity, allowing for precise detection tailored to specific needs.
Operating on a DC or AC supply voltage, the C30P/00-2A sensors boast high noise immunity and are capable of handling a switching frequency of 10Hz. They are designed to withstand harsh environments, with an operating temperature range of -25°C to +80°C and a degree of protection rated at IP67. The sensors include short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance and longevity.
The sensors come with a 2m PVC cable for easy installation and are supplied with a screwdriver and two M30 nuts for secure mounting. The yellow LED indicator provides a clear visual signal when an object is detected. With CE and cULus approvals, these sensors meet international standards for safety and performance. Whether used in industrial automation or other demanding applications, the Datasensing C30P/00-2A Sensors deliver exceptional accuracy and durability.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- SCR
- Output Function:
- NO/NC
- Switching frequency:
- 10Hz
- Operating Voltage:
- 20...250Vac/50-60Hz
- No-Load supply current:
- ? 12mA
- Load current:
- 2,5A max (20ms)
- Leakage current:
- ? 100µA
- Output voltage drop:
- 10VAC @ IL?200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 180g
- Housing Material:
- Polyester
- Connections:
- 2m PVC cable
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
