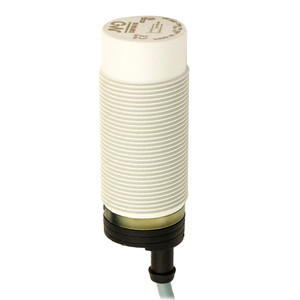

Datasensing C30P/BN-2E Sensors
Datasensing
$158.54
The Datasensing C30P/BN-2E Sensors are high-performance capacitive sensors designed for precision and reliability in various industrial applications. Featuring a robust M30 plastic unshielded housing, these sensors offer a nominal sensing distance of 4 to 25mm with adjustable sensitivity, ensuring optimal performance across different environments. The sensors operate on a DC supply voltage of 10 to 40V, with high noise immunity and a switching frequency of 30Hz, making them suitable for dynamic applications.
Equipped with both Normally Open (NO) and Normally Closed (NC) output functions, the C30P/BN-2E sensors utilize an NPN output type, providing flexibility in integration. The sensors are designed with a low no-load supply current of ? 12mA and a load current capacity of ? 200mA, ensuring energy efficiency. The built-in short-circuit, reverse polarity, and impulsive overvoltage protection enhance the durability and safety of the sensors.
The sensors feature a yellow LED indicator for object detection, and their IP67-rated mechanical protection ensures reliable operation in harsh environments. With a compact design of M30 diameter and 91mm length, these sensors are easy to install using the included M12 plug connection and can withstand operating temperatures ranging from -25°C to +80°C. The package includes a screwdriver and two M30 nuts for convenient installation. Certified with CE and cULus approvals, the Datasensing C30P/BN-2E Sensors are a dependable choice for your sensing needs.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- NPN
- Output Function:
- NO + NC
- Switching frequency:
- 30Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 2,5Vmax @ IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 100g
- Housing Material:
- Polyester
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
