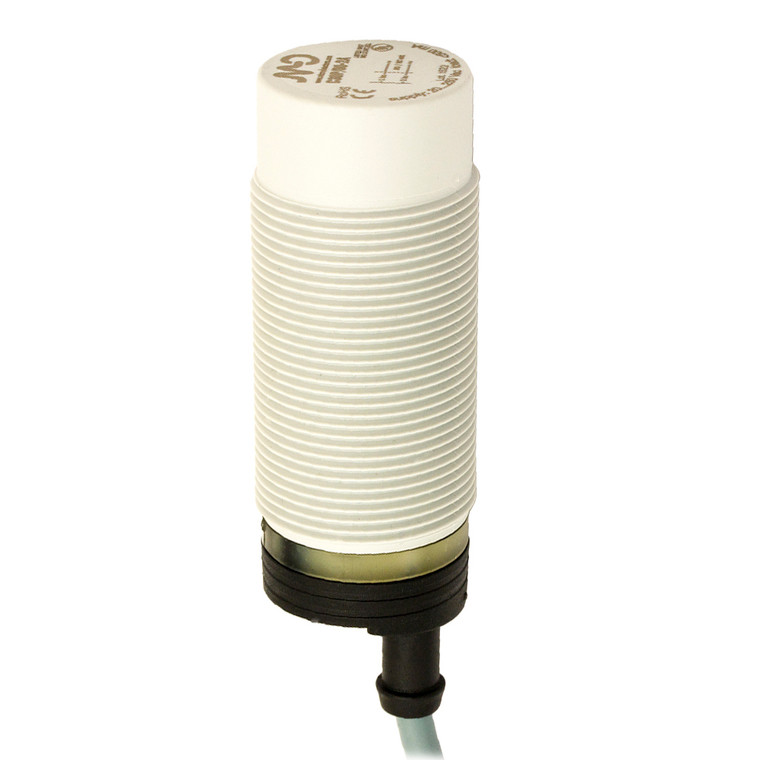

The Datasensing C30P/BP-2A Sensors are high-performance capacitive sensors designed for precise detection in various industrial applications. Featuring a robust M30 plastic unshielded housing, these sensors offer a nominal sensing distance of 4 to 25mm with adjustable sensitivity, ensuring optimal performance in diverse environments. The sensors operate on a DC supply voltage of 10 to 40Vdc and are equipped with PNP NO+NC output functions, providing reliable switching with a frequency of up to 30Hz.
Engineered for durability, the C30P/BP-2A Sensors boast high noise immunity and are protected against short circuits, reverse polarity, and impulsive overvoltage. The polyester housing and active head material ensure resilience in harsh conditions, with an operating temperature range of -25°C to +80°C. The sensors are IP67 rated for mechanical protection, making them suitable for use in demanding environments.
Additional features include a 2m PVC cable for easy connectivity, yellow LED indicators for object detection, and a time delay before availability of ? 200ms. The sensors come with supplied accessories, including a screwdriver and two M30 nuts, for convenient installation. With CE cULus approvals and EMC compatibility per IEC 60947-5-2 standards, the Datasensing C30P/BP-2A Sensors are a reliable choice for your sensing needs.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 30Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 2,5Vmax @ IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 180g
- Housing Material:
- Polyester
- Connections:
- 2m PVC cable
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
