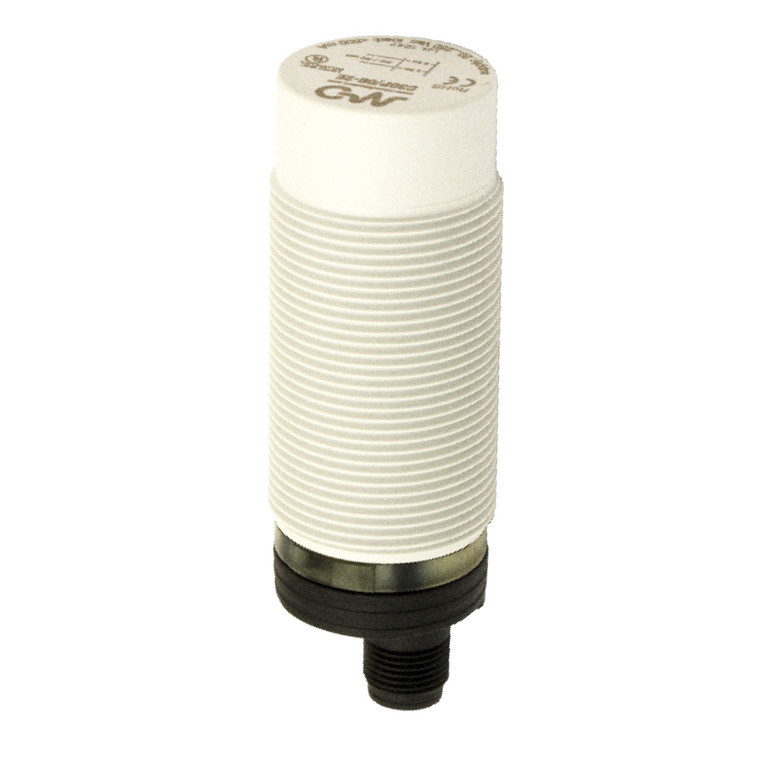

Datasensing C30P/BP-2E Sensors
Datasensing
$158.54
The Datasensing C30P/BP-2E Sensors are high-performance capacitive sensors designed for precise detection in various industrial applications. Featuring a robust M30 plastic unshielded housing, these sensors offer a nominal sensing distance of 4 to 25mm with adjustable sensitivity, ensuring optimal performance in diverse environments. The sensors operate on a DC supply voltage of 10 to 40V and are equipped with PNP NO+NC output functions, providing reliable switching at a frequency of 30Hz.
Engineered for durability, the C30P/BP-2E Sensors boast high noise immunity and are protected against short circuits, reverse polarity, and impulsive overvoltage. The sensors are equipped with a yellow LED indicator for object detection and have a time delay before availability of ? 200ms. With a no-load supply current of ? 12mA and a load current of ? 200mA, these sensors are energy-efficient and suitable for continuous operation.
The sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +80°C and a storage temperature range of -40°C to +85°C. They are compliant with CE and cULus approvals and meet EMC compatibility standards IEC 60947-5-2. The IP67-rated mechanical protection ensures resistance to dust and water ingress, making them ideal for challenging industrial settings.
Supplied with a screwdriver and two M30 nuts, the Datasensing C30P/BP-2E Sensors are easy to install and maintain, offering a reliable solution for your sensing needs.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 30Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 12mA
- Load current:
- ? 200mA
- Leakage current:
- ? 100µA
- Output voltage drop:
- 2,5Vmax @ IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ? 200ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 100g
- Housing Material:
- Polyester
- Connections:
- M12 plug
- Active Head Material:
- Polyester
- Tightening torque:
- 50Nm
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Mechanical Protection:
- IP67
