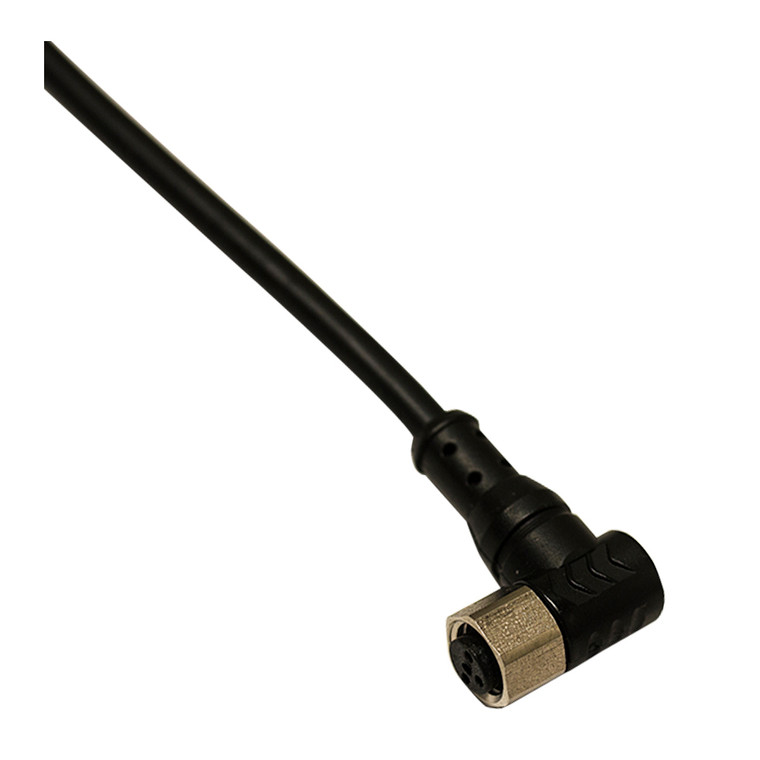

CON M8 90* 3P 5MT PUR RoHs Comp.
- Nominal current:
- 4 A
- Led:
- no
- Wires:
- 3
- Rated impulse voltage:
- 1,5 kV
- Nominal voltage:
- Max. 60 V ac/dc
- Connections:
- With open ended wires
- Tightening torque:
- 0,4 Nm
- Fibre lengh (m):
- 5
- Head type:
- 90°
- Plug:
- M8
- Outer diameter:
- Ø 3,75 mm ±0,2mm
- Jacket material:
- PUR
- Wire isolation:
- PVC
- Conductors section:
- 0,25 mm2 (32 x 0,10 mm2)
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
