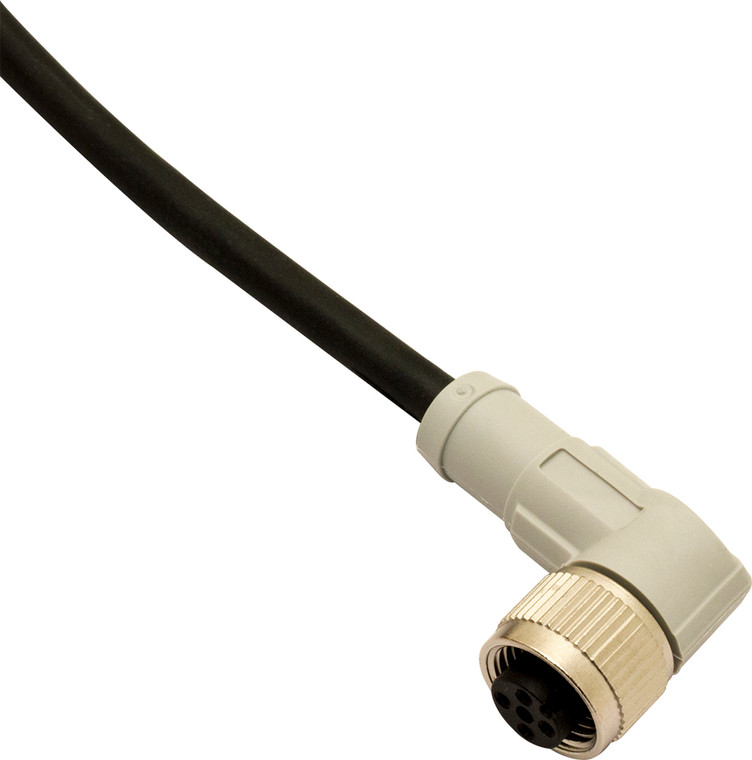

Datasensing CD12M/0B-020C5 Sensors
Datasensing
$21.34
CON M12 90* 4P 2MT PUR NO
- Nominal current:
- 4 A
- Led:
- no
- Wires:
- 4
- Rated impulse voltage:
- 2,5 kV
- Nominal voltage:
- Max. 250 V ac/dc
- Connections:
- With open ended wires
- Tightening torque:
- 0,6 Nm
- Fibre lengh (m):
- 2
- Head type:
- 90°
- Plug:
- M12
- Outer diameter:
- Ø 4,7 mm ± 5%
- Jacket material:
- PUR
- Wire isolation:
- PVC
- Conductors section:
- 0,25 mm2 (32 x 0,10 mm2)
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
