Datasensing CDV-47 Sensors
Datasensing
$19.04

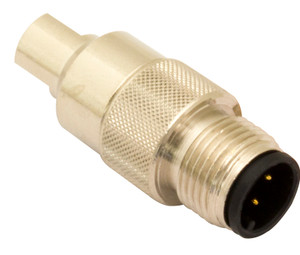

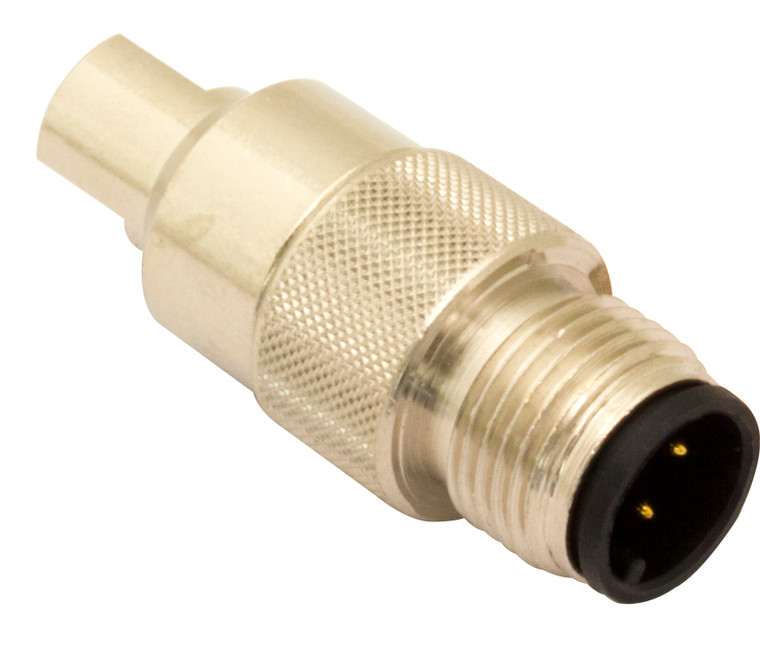

Connector Male M12 for cable D 4,7 mm
- Nominal current:
- 4 A
- Led:
- no
- Wires:
- 4
- Nominal voltage:
- 60 Vdc - 48 Vac
- Connections:
- to solder
- Material:
- nickel-plated brass
- Plug:
- M8
- Outer diameter:
- ø 4,7 mm
- Plug connector material:
- polyammide 66 GV, V0 UL94
- Contacts material:
- nickel-plated brass with surface gold-plating
- O-Ring material:
- NBR 72
- Model:
- Male
- Degree of protection:
- IEC IP65
- Mechanical Protection:
- IEC IP65
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
