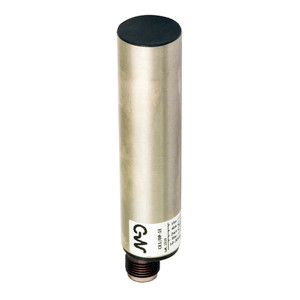

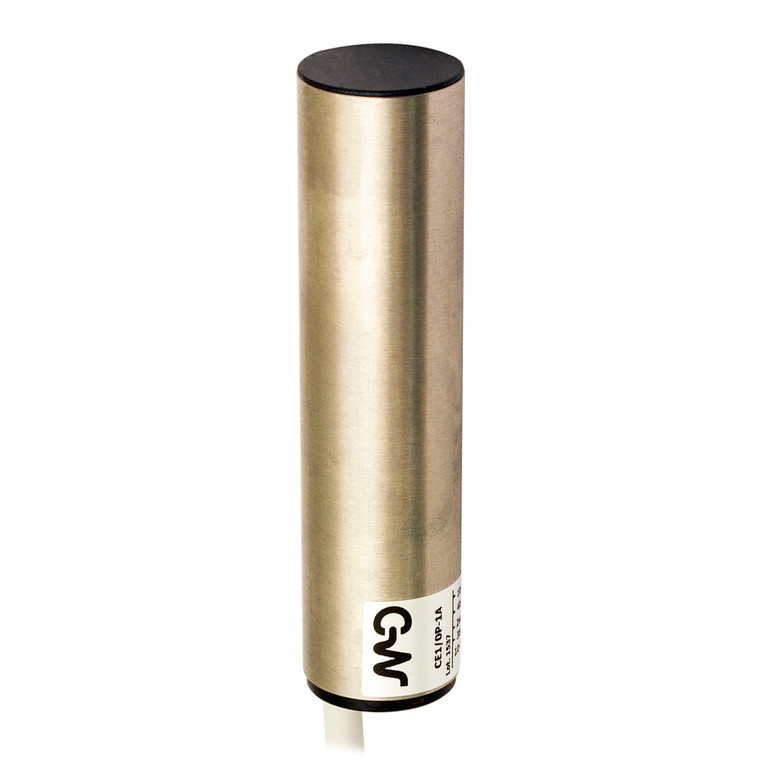

Datasensing CE2/0P-1A Sensors

The Datasensing CE2/0P-1A Sensors are designed for precision and reliability in various industrial applications. These capacitive sensors feature a nominal sensing distance ranging from 1.5 to 10mm, with a thermal drift of Sr less than 20% and a repeat accuracy of 5%. The sensitivity can be easily adjusted using a trimmer, ensuring optimal performance tailored to your needs. Equipped with a PNP output type and self-monitoring capabilities, these sensors offer both NO and NC complementary outputs. They operate at a switching frequency of 300Hz and support an operating voltage between 10 to 30Vdc. The sensors are designed to handle a no-load supply current of up to 17mA and a load current of up to 100mA, with a minimal leakage current of less than 1?A. The robust AISI 303 stainless steel housing provides IP65 protection, safeguarding against electrical damages and environmental factors. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and longevity. The axial cable exit or M12 plastic plug cable exit options offer flexibility in installation, while the yellow LED indicator provides clear object detection feedback. With a compact design of ø20mm in diameter and 80mm in length, these sensors are easy to mount and integrate into existing systems. They are approved by CE and cULus, and comply with EMC compatibility standards IEC 60947-5-2. The sensors are also resistant to shocks and vibrations, adhering to IEC 60068-2-6 and IEC 60068-2-27 standards. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing CE2/0P-1A Sensors are a reliable choice for demanding environments. Supplied with a screwdriver for easy installation, these sensors are ready to enhance your operational efficiency.
