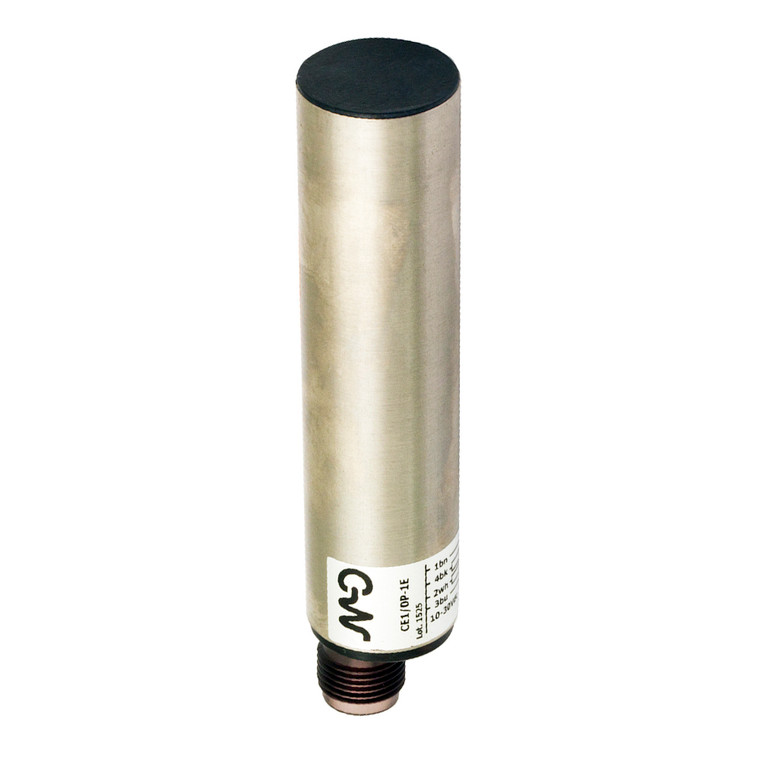

Datasensing CE2/0P-1E Sensors

The Datasensing CE2/0P-1E Sensors are designed for precision and reliability in various industrial applications. These capacitive sensors feature a nominal sensing distance ranging from 1.5 to 10mm, with a thermal drift of Sr less than 20% and a repeat accuracy of 5%. The sensitivity can be easily adjusted using a trimmer, ensuring optimal performance for your specific needs. Equipped with a PNP output type with self-monitoring capabilities, these sensors offer NO+NC complementary output functions. They operate at a switching frequency of 300Hz and support an operating voltage between 10 to 30Vdc. The sensors are designed to handle a no-load supply current of ? 17mA and a load current of ? 100mA, with a leakage current of ? 1?A. The output voltage drop is minimal at 1.5V, even at a maximum load current of 100mA, and the ripple content is kept at ?15%. Built with a robust AISI 303 stainless steel housing, these sensors are protected against electrical damages and feature IP65 protection, making them suitable for harsh environments. The axial cable exit or M12 plastic plug cable exit options provide flexibility in installation. The sensors are equipped with a yellow LED indicator for object detection and include short-circuit protection with autoreset, reverse polarity protection, and impulsive overvoltage protection. With a compact design of ø20mm in diameter and a length of 92mm, these sensors are lightweight at 80g and come with a screwdriver for easy installation. They are approved by CE and cULus, ensuring compliance with international standards. The sensors are also compatible with EMC standards IEC 60947-5-2 and are tested for shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are a reliable choice for your sensing needs.
